SIRIUS FI COMPLETELY NEW COLOR MECHANICAL BRAKE VERSION

COLOR

SIRIUS FI COMPLETELY NEW COLOR MECHANICAL BRAKE VERSION Black gray
Contact Us
Black gray

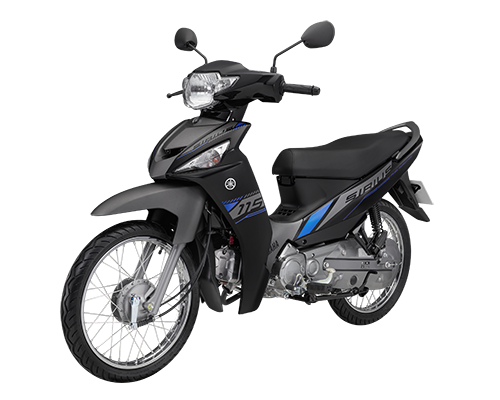

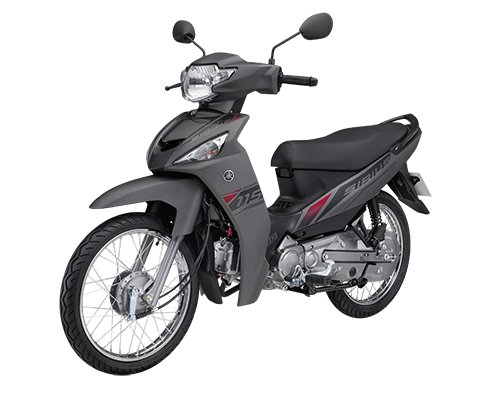

SIRIUS FI COMPLETELY NEW COLOR MECHANICAL BRAKE VERSION grey
Contact Us
Gray - Black

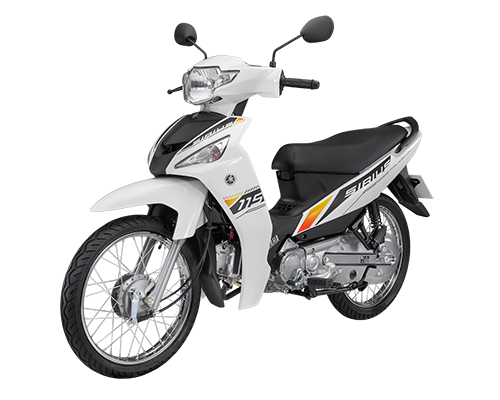

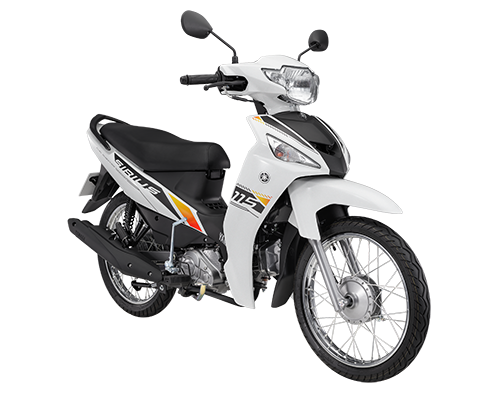

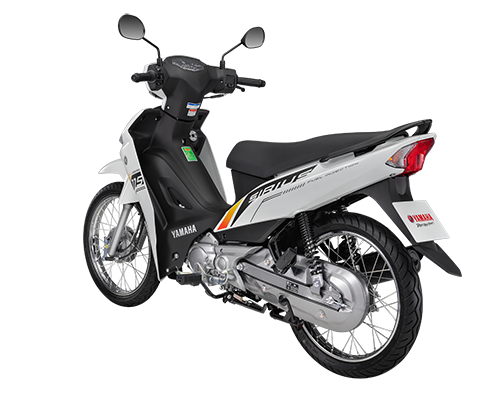

SIRIUS FI COMPLETELY NEW black and white
Contact Us
Black and white

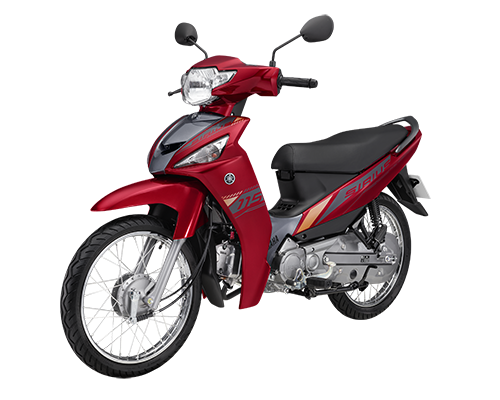

SIRIUS FI COMPLETELY NEW COLOR MECHANICAL BRAKE VERSION Red - Gray
Contact Us
Red - Gray

TECHNICAL SPECIFICATIONS

 Engine
Type 4 stroke, 2 valves, SOHC, air cooled
Cylinder arrangement Single cylinder
Cylinder capacity (CC) 113.7 cm3
Piston diameter and stroke 50.0 × 57.9 mm
Compression ratio 9.3:1
Maximum capacity 6.4 kW (8.7 PS) / 7,000 rpm
Maximum torque 9.5 Nm (0.97 kgf/m) / 5,500 rpm
System starts Electric and Pedal
Lubrication systems Crankcase wet, pressure
Fuel consumption (l/100km) 1.65
Ignition system TCI
Primary and secondary transmission ratio 2,900 (58/20) / 2,857 (40/14)
Clutch system Multi-disc, wet type centrifuge
Transmission ratio 1st: 2,833 (December 34) 2nd: 1,875 (16/30) 3rd: 1,353 (17/23) 4th: 1,045 (22/23)
Powertrain type 4 rotating numbers
Chassis
Frame type Underbone
Front suspension system Telescopic fork
Deviation of steering axis 26° 30' / 73 mm
Rear suspension system Shrugging the spring
Front brake Single hydraulic disc/drum
Rear brake Drum / Drum
Front tire 70/90-17 M/C 38P (With tube)
Rear tire 80/90-17 M/C 50P (With tube)
Headlight 12V 35/35W
Front lights/rear lights 12V 10W (halogen) ×2 / 12V 10W (halogen) ×2
Size
Dimensions (length x width x height) 1,940 mm × 715 mm × 1,090 mm
Saddle height 775 mm
Vehicle chassis height 155 mm
Distance between 2 wheel axles 1,235 mm
Wet weight 98 kg (full of gasoline and engine oil)
Petrol tank capacity 4.0L
Engine oil capacity 1.0L
Guarantee
Warranty period 3 years or 30,000km whichever comes first

KEY FEATURES

1

1

2

2

3

3

Gallery
