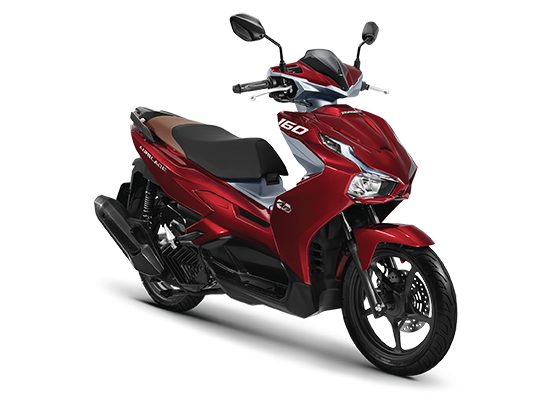

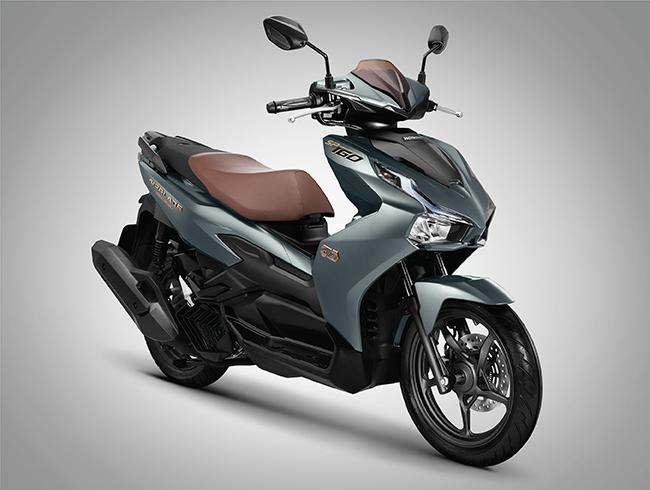

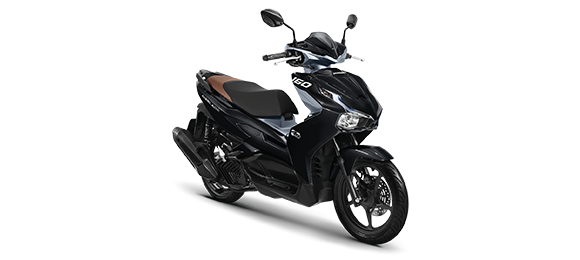

Air Blade

Self mass

Air Blade 125: 113 kg
Air Blade 160: 114 kg

Length x WIDTH X HEIGHT

Air Blade 125: 1,887 x 687 x 1,092 mm
Air Blade 160: 1,890 x 686 x 1,116 mm

Wheel axle distance

1,286 mm

Saddle height

775 mm

Ground clearance

Air Blade 125: 141 mm
Air Blade 160: 142 mm

Petrol tank capacity

4.4 liters

Layer size before/after

Air Blade 125: Front tire 80/90 - Rear tire 90/90
Air Blade 160: Front tire 90/80 - Rear tire 100/80

Forks

Telescopic tube, hydraulic shock absorber

Rear fork

Cylindrical spring, hydraulic damper

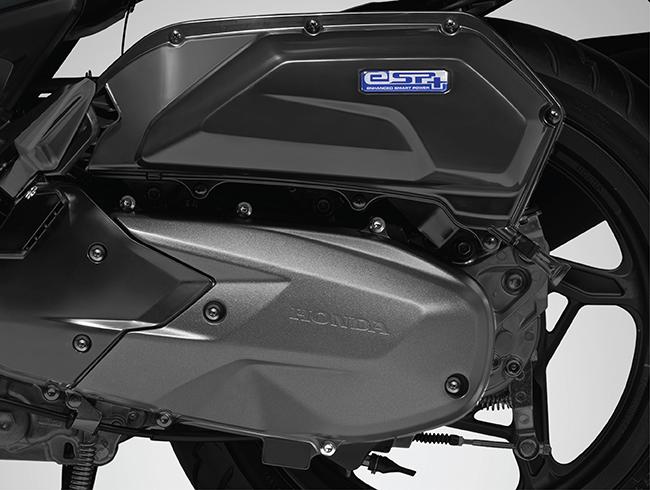

Engine type

Gasoline, 4 stroke, 1 cylinder, liquid cooled

Maximum capacity

Air Blade 125: 8.75kW/8,500 rpm
Air Blade 160: 11.2kW/8,000 rpm

Engine oil capacity

0.8 liters when changing oil and
0.9 liters when disassembling the engine

Fuel consumption

Air Blade 125: 2.26l/100km
Air Blade 160: 2.3l/100km

Gear

Stepless

Transmission type

Belt, stepless variation

System starts

Electricity

Maximum moment

Air Blade 125: 11.3Nm/6,500 rpm
Air Blade 160: 14.6Nm/6,500 rpm

Cylinder capacity

Air Blade 125: 124.8 cc
Air Blade 160: 156.9 cc

Diameter x Piston stroke

Air Blade 125: 53.5 x 55.5 mm
Air Blade 160: 60 x 55.5 mm

Compression ratio

Air Blade 125: 11.5:1
Air Blade 160: 12:1
