EXCITER 155 VVA COMPLETELY NEW STANDARD VERSION

COLOR

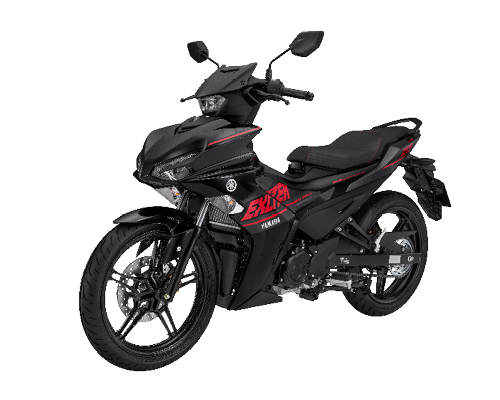

EXCITER 155 VVA COMPLETELY NEW STANDARD VERSION Black gray
Contact Us
Black gray

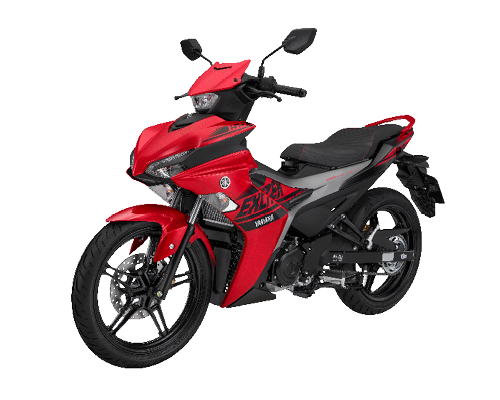

EXCITER 155 VVA COMPLETELY NEW STANDARD VERSION Red - Gray
Contact Us
Red - Gray

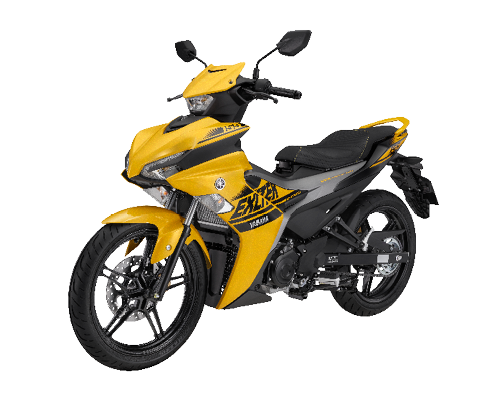

EXCITER 155 VVA COMPLETELY NEW STANDARD VERSION Yellow - Gray
Contact Us
Yellow - Gray

TECHNICAL SPECIFICATIONS

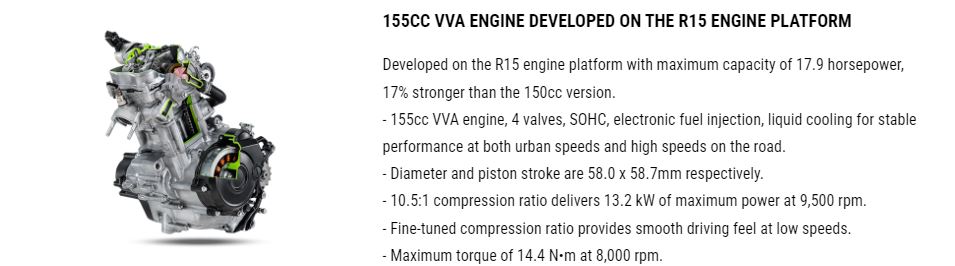

 Engine
Type 4 stroke, 4 valve, SOHC, liquid cooled
Cylinder arrangement Single cylinder
Cylinder capacity (CC) 155.1
Piston diameter and stroke 58.0 x 58.7 mm
Compression ratio 10.5:1
Maximum capacity 13.2kW/ 9,500 rpm
Maximum torque 14.4 N・m (1.5 kgf・m) / 8,000 rpm
System starts Electric start
Lubrication systems Wet crankcase
Fuel consumption (l/100km) 1.91L/100km
Carburettor Electronic fuel injection
Ignition system TCI (digital)
Primary and secondary transmission ratio 3,042 (73/24) / 3,286 (46/14)

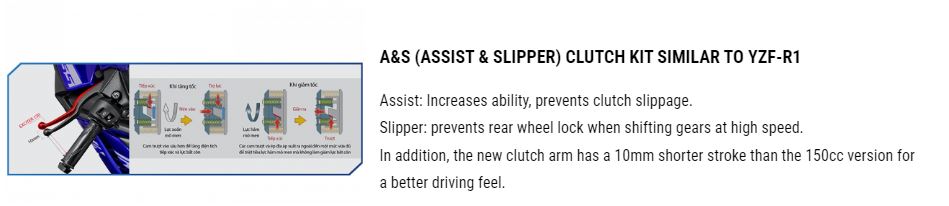

Clutch system Wet type multi-disc
Transmission ratio 1: 2,833 (12/34) / 2: 1,875 (16/30) / 3: 1,364 (22/30) 4: 1,143 (21/24) / 5: 0.957 (23/22) / 6: 0.840 (21/21) 25)
Powertrain type Constant gears, 6 speeds / Shift
Cooling tank 110mm x 183.5mm (Area 20,185 mm2)
Voltage, Battery capacity 12V 3.5Ah (10HR)
Chassis
Frame type Spine frame
Deviation of steering axis 25°50′ / 87 mm
Front brake Single hydraulic disc brake; 1 piston
Rear brake Single hydraulic disc brake
Front tire 90/80-17M/C 46P (tubeless tire)
Rear tire 120/70-17M/C 58P (tubeless tire)
Front shock absorber Telescopic tube
Rear shock absorber More later

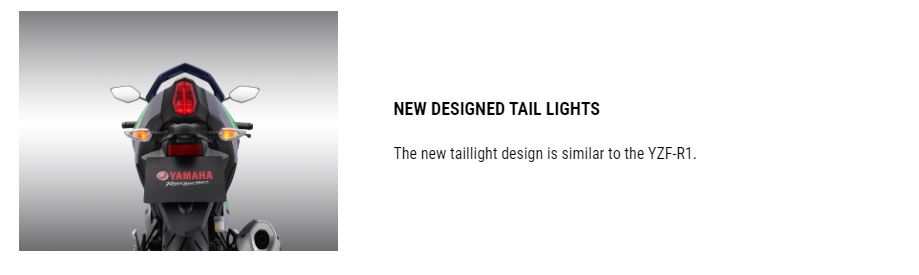

Front lights/rear lights LED / 12V, 10W×2
Size
Dimensions (length x width x height) 1,975 mm × 665 mm × 1,105 mm
Saddle height 795 mm
Vehicle chassis height 150mm
Distance between 2 wheel axles 1,290 mm
Wet weight 119 kg
Petrol tank capacity 5.4 liters
Engine oil capacity 1.10 L
Guarantee

KEY FEATURES

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

Gallery
