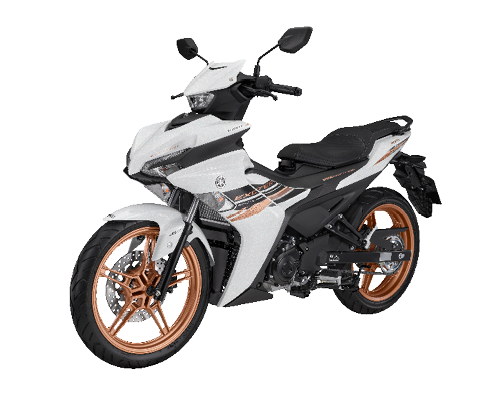

EXCITER 155 VVA NEW ABS PREMIUM VERSION

COLOR

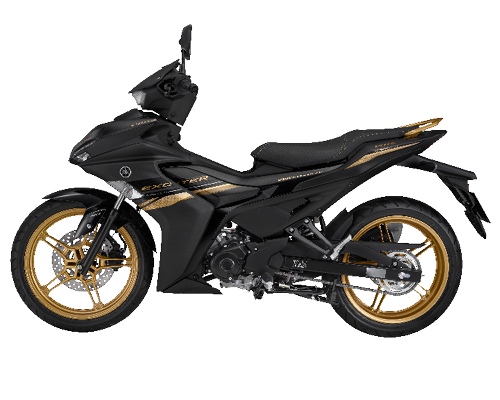

EXCITER 155 VVA NEW ABS PREMIUM VERSION Black
Contact Us
Black
EXCITER 155 VVA NEW ABS PREMIUM VERSION Green
Contact Us
Green

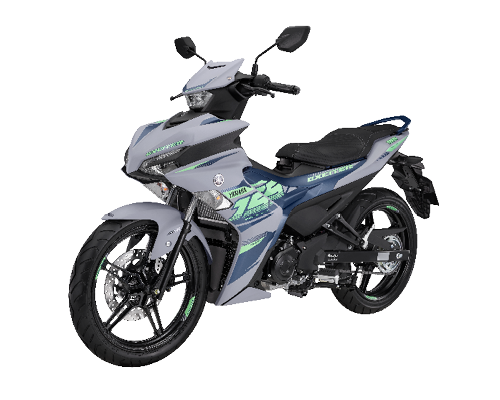

EXCITER 155 VVA NEW ABS PREMIUM VERSION Blue gray
Contact Us
Blue gray
EXCITER 155 VVA NEW ABS PREMIUM VERSION Black and white
Contact Us
Black and white

TECHNICAL SPECIFICATIONS

 Engine
Type 4 stroke, 4 valve, SOHC, liquid cooled
Cylinder arrangement Single cylinder
Cylinder capacity (CC) 155.1
Piston diameter and stroke 58.0 x 58.7 mm
Compression ratio 10.5:1
Maximum capacity 13.2kW (17.9 PS) / 9,500 rpm
Maximum torque 14.4 N・m (1.5 kgf・m) / 8,000 rpm
System starts Electric start
Lubrication systems Wet crankcase
Fuel consumption (l/100km) 1.99L/100km
Carburettor Electronic fuel injection
Ignition system TCI (digital)
Primary and secondary transmission ratio 3,042 (73/24) / 3,286 (46/14)
Clutch system Wet type multi-disc
Transmission ratio 1: 2,833 (12/34) / 2: 1,875 (16/30) / 3: 1,364 (22/30) 4: 1,143 (21/24) / 5: 0.957 (23/22) / 6: 0.840 (21/21) 25)
Powertrain type Constant gears, 6 speeds / Shift
Cooling tank 110mm x 183.5mm (Area 20,185 mm2)
Voltage, Battery capacity 12V 3.5Ah (10HR)
Chassis
Frame type Spine frame
Deviation of steering axis 25°50′ / 87 mm
Front brake Single hydraulic disc brake; 2 pistons
Rear brake Single hydraulic disc brake
Front tire 90/80-17M/C 46P (tubeless tire)
Rear tire 120/70-17M/C 58P (tubeless tire)
Front shock absorber Telescopic tube
Rear shock absorber More later
Front lights/rear lights LED / 12V, 10W×2
Size
Dimensions (length x width x height) 1,975 mm × 665 mm × 1,105 mm
Saddle height 795 mm
Vehicle chassis height 150mm
Distance between 2 wheel axles 1,290 mm
Wet weight 123 kg
Petrol tank capacity 5.4 liters
Engine oil capacity 1.10 L
Guarantee
Warranty period 3 years or 30,000km (whichever comes first)
