SIRIUS BRAKE VERSION

COLOR

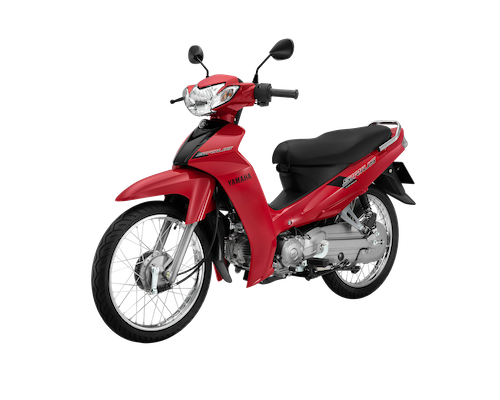

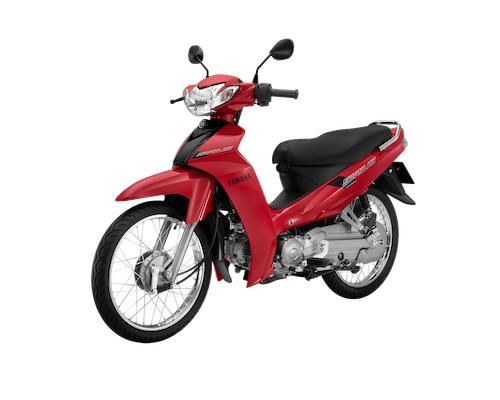

SIRIUS BRAKE VERSION Red Black
Contact Us
Red - Black

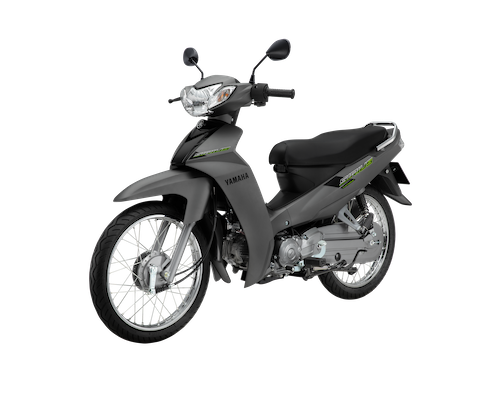

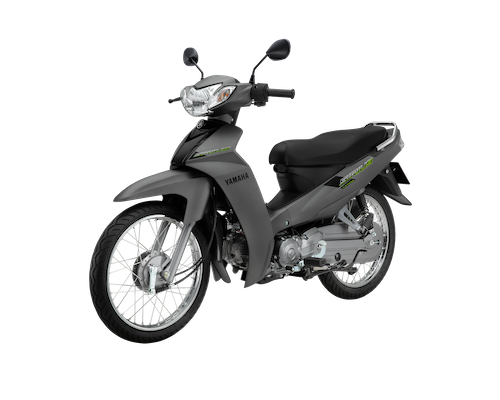

SIRIUS BRAKE VERSION Gray - Black
Contact Us
Gray - Black

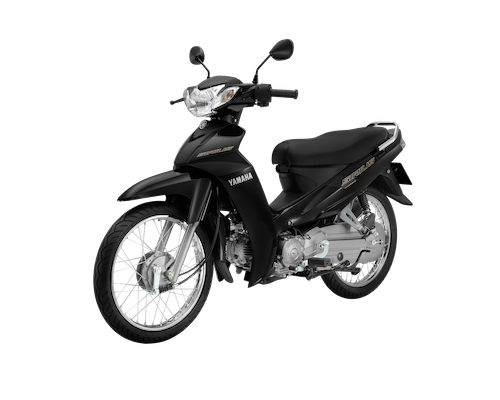

SIRIUS BRAKE VERSION Black
Contact Us
Black

TECHNICAL SPECIFICATIONS

 Engine
Type 4 stroke, 2 SOHC valves, air cooled
Cylinder arrangement Single cylinder
Cylinder capacity (CC) 110.3
Piston diameter and stroke 50.0×57.9 mm
Compression ratio 9.3:1
Maximum capacity 5.9/8,000 kW/rpm
Maximum torque 9.5 Nm (0.97kgf/m)/5,500 rpm
System starts Electric/Need to start
Lubrication systems The car is wet
Engine oil capacity 1 L
Petrol tank capacity 4.2 liters
Fuel consumption (l/100km) 2.08
Ignition system TCI (digital)
Primary and secondary transmission ratio 3,722 (67/18) / 2,333 (35/15)
Clutch system Multi-disc, Wet type centrifuge
Transmission ratio 1: 3,167 2: 1,941 3: 1,381 4: 1,095
Powertrain type 4 round numbers
Chassis
Front suspension system Telescopic type
Front fork travel 95 mm
Deviation of steering axis 26.2° / 73 mm
Rear suspension system Cylindrical spring hydraulic shock absorber
Rear shock absorber journey 77mm
Front brake Mechanical brake (drum)
Rear brake Mechanical brake (drum)
Front tire 70/90 - 17 38P (Tyre with tube)
Rear tire 80/90 - 17 44P (Tyre with tube)
Headlight Halogen 12V, 35W/35Wx1
Tail light 12V, 5W/18W x 1
Size
Dimensions (length x width x height) 1,940 mm×715 mm×1,075 mm
Saddle height 770mm
Vehicle chassis height 130mm
Distance between 2 wheel axles 1,200mm
Wet weight 100kg
Guarantee
Warranty period 3 years or 30,000km (whichever comes first)
