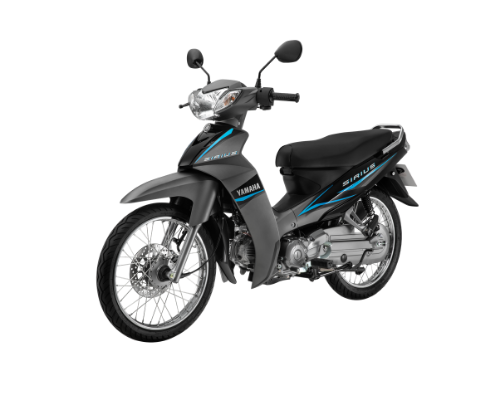

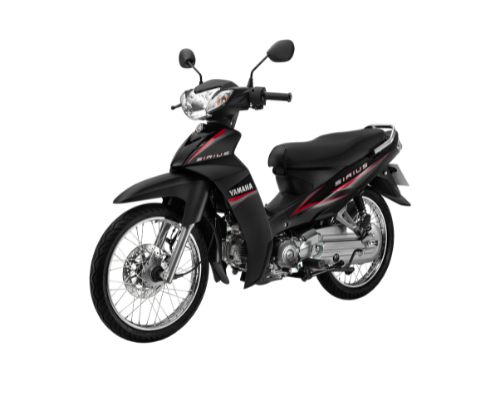

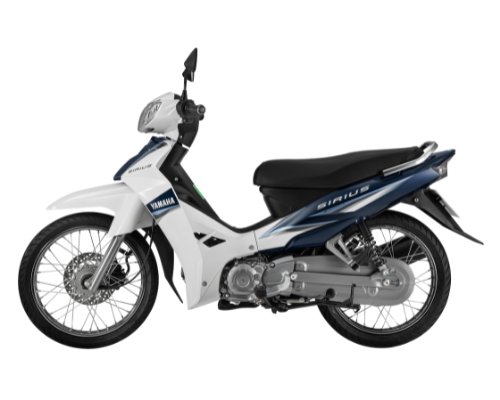

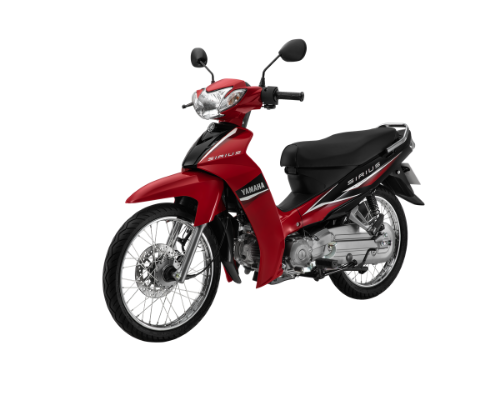

SIRIUS DISC BRAKE VERSION

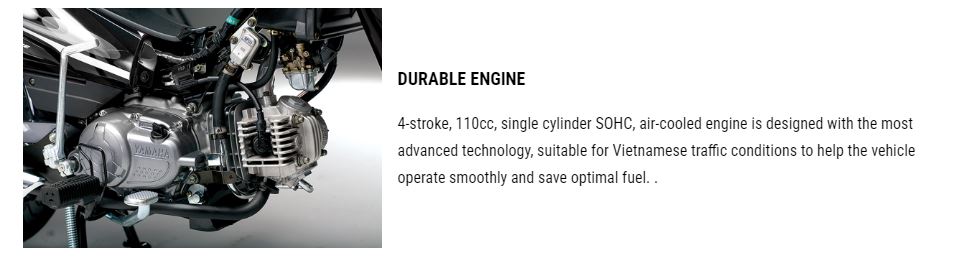

Engine

Type	4 stroke, 2 SOHC valves, air cooled
Cylinder arrangement	Single cylinder
Cylinder capacity (CC)	110.3
Piston diameter and stroke	50.0×57.9 mm
Compression ratio	9.3:1
Maximum capacity	5.9/8,000 kW/rpm
Maximum torque	9.5 Nm (0.97kgf/m)/5,500 rpm
System starts	Electric/Need to start
Lubrication systems	The car is wet
Engine oil capacity	1 L
Petrol tank capacity	4.2 liters
Fuel consumption (l/100km)	2.08
Ignition system	TCI (digital)
Primary and secondary transmission ratio	3,722 (67/18) / 2,333 (35/15)
Clutch system	Multi-disc, Wet type centrifuge
Transmission ratio	1: 3,167 2: 1,941 3: 1,381 4: 1,095
Powertrain type	4 round numbers

Chassis

Front suspension system	Telescopic type
Front fork travel	95 mm
Deviation of steering axis	26.2° / 73 mm

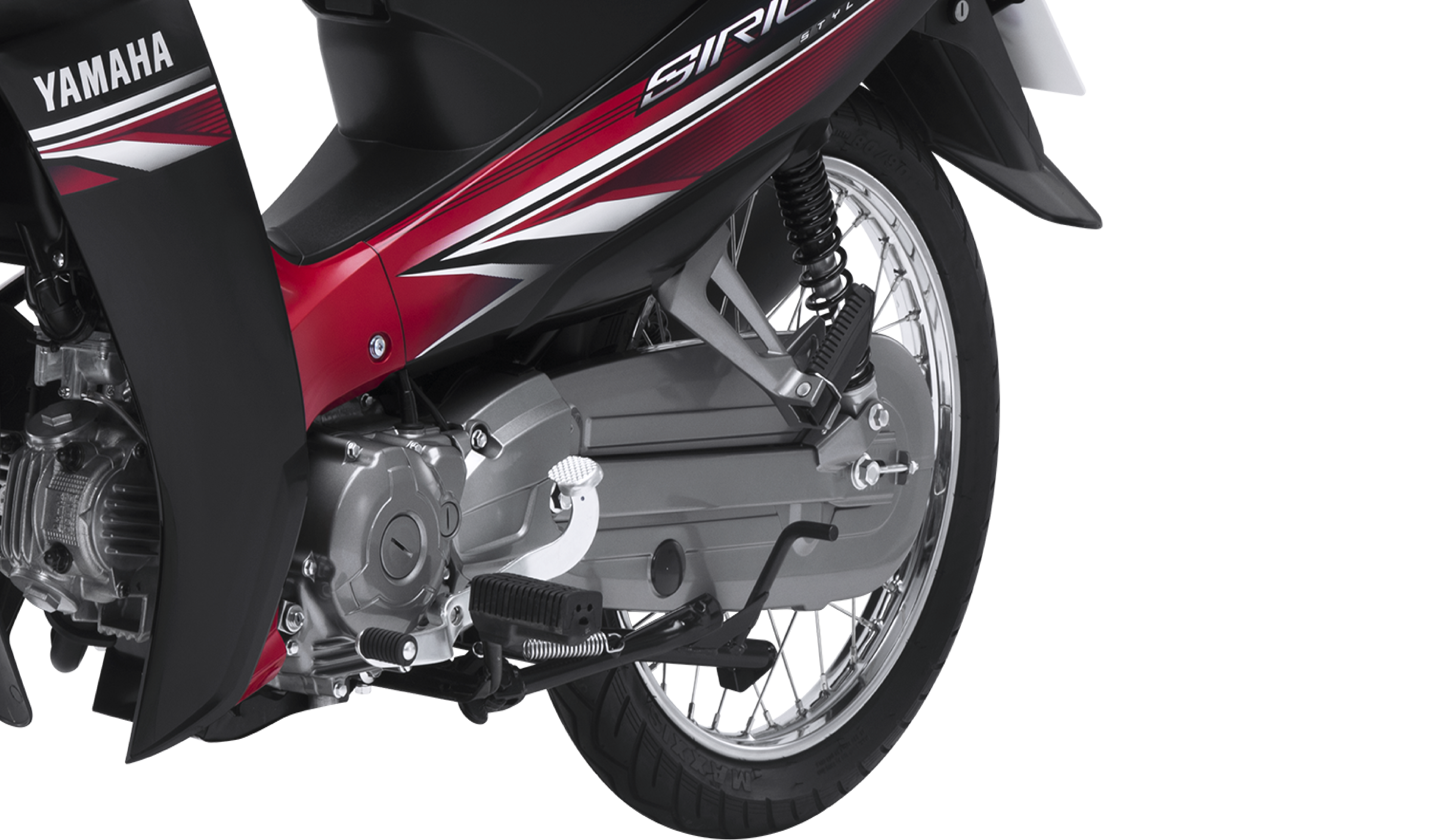

Rear suspension system	Cylindrical spring hydraulic shock absorber
Rear shock absorber journey	77mm

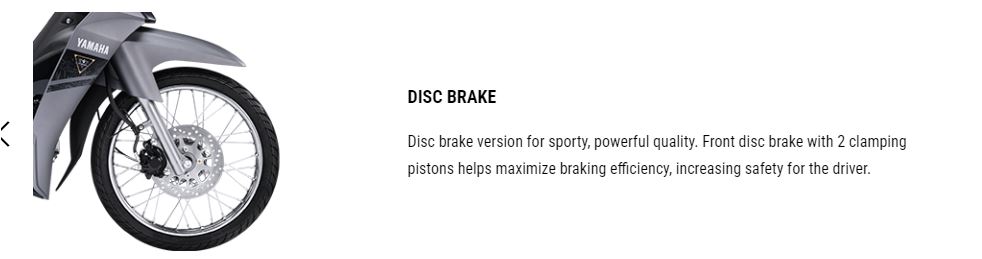

Front brake	Hydraulic disc
Rear brake	Mechanical brake (drum)
Front tire	70/90 - 17 38P (Tyre with tube)
Rear tire	80/90 - 17 44P (Tyre with tube)

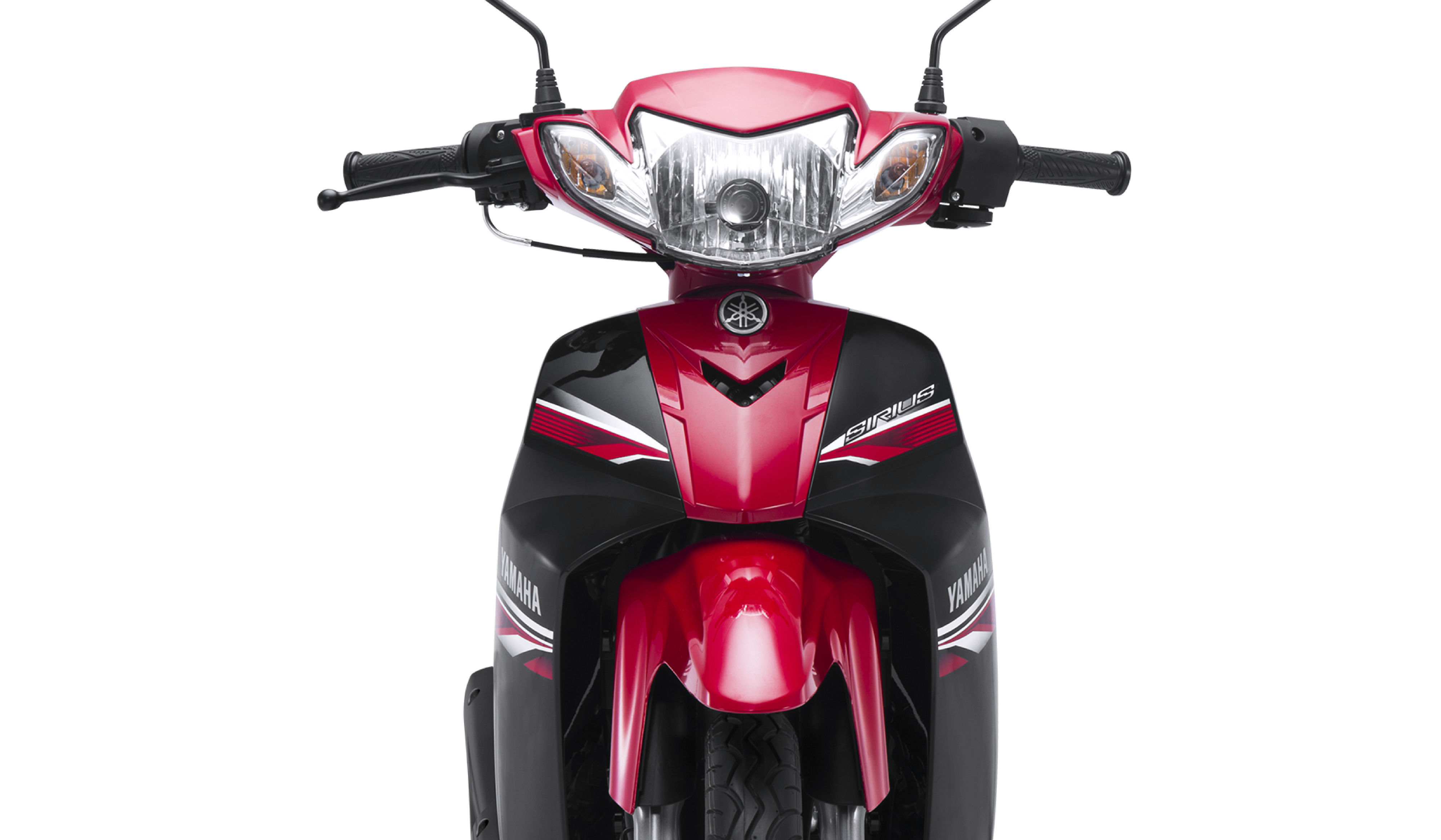

Headlight	Halogen 12V, 35W/35Wx1

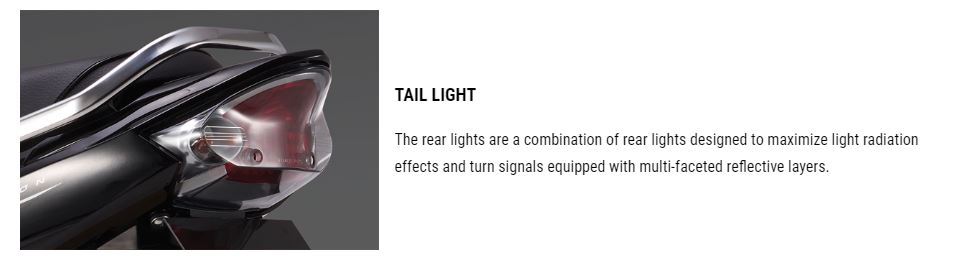

Tail light	12V, 5W/18W x 1

Size

Dimensions (length x width x height)	1,940 mm×715 mm×1,075 mm

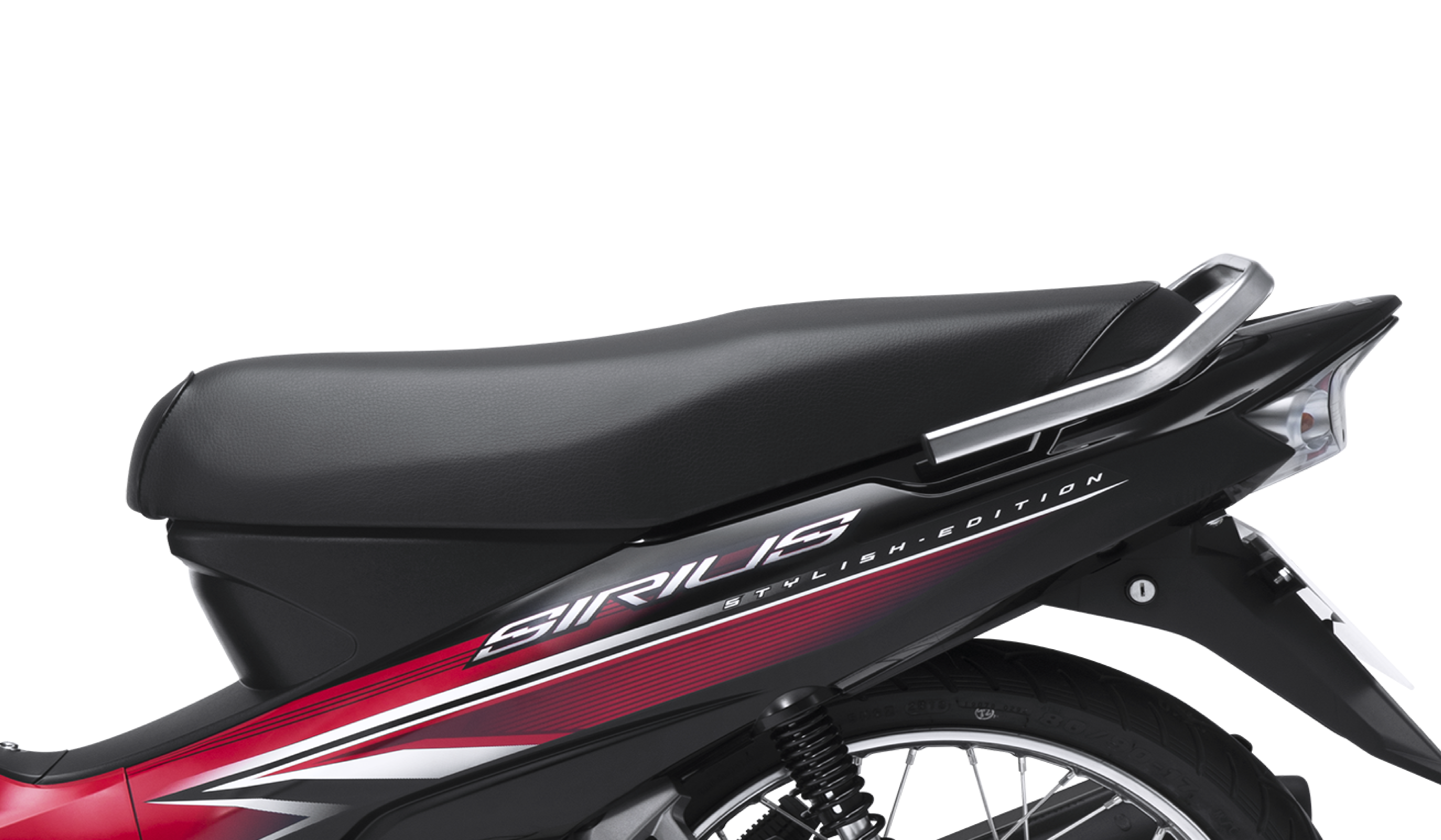

Saddle height	770mm
Vehicle chassis height	130mm
Distance between 2 wheel axles	1,200mm
Wet weight	100kg

Guarantee

Warranty period

3 years or 30,000km (whichever comes first)
