SIRIUS FI NEW COLOR MECHANICAL BRAKE VERSION

COLOR

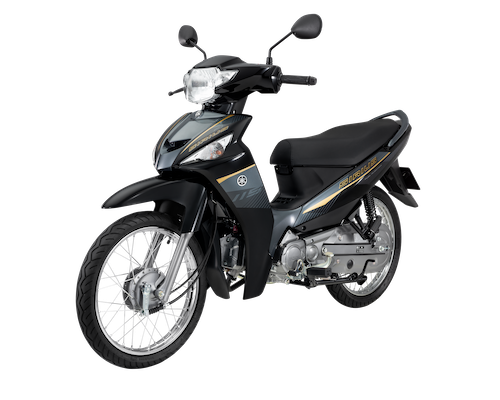

SIRIUS FI NEW COLOR MECHANICAL BRAKE VERSION Black gray
Contact Us
Black gray

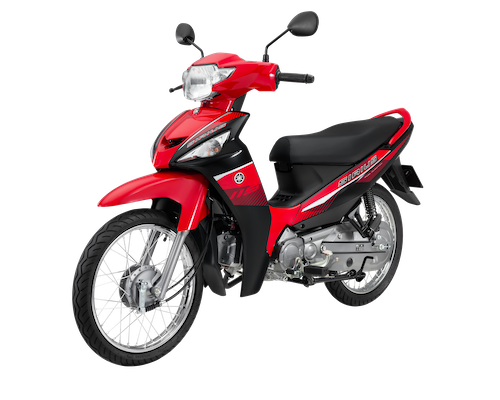

SIRIUS FI NEW COLOR MECHANICAL BRAKE VERSION Red - Black
Contact Us
Red - Black

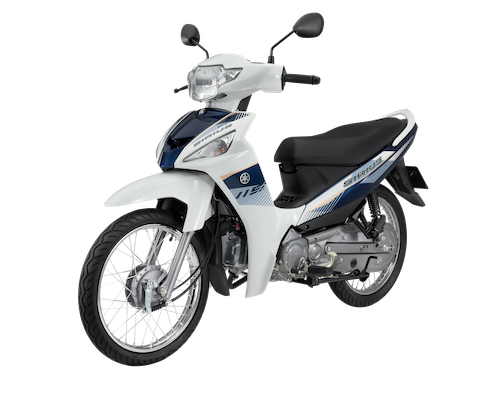

SIRIUS FI NEW COLOR MECHANICAL BRAKE VERSION White - Blue
Contact Us
White - Blue
SIRIUS FI NEW COLOR MECHANICAL BRAKE VERSION Blue gray
Contact Us
Blue gray

TECHNICAL SPECIFICATIONS

 Engine
Type 4 stroke, 2 valves, SOHC, air cooled
Cylinder arrangement Single cylinder
Cylinder capacity (CC) 113.7 cm3
Piston diameter and stroke 50.0 × 57.9 mm
Compression ratio 9.3:1
Maximum capacity 6.4 kW (8.7 PS) / 7,000 rpm
Maximum torque 9.5 Nm (0.97 kgf/m) / 5,500 rpm
System starts Electric and Pedal
Lubrication systems Crankcase wet, pressure
Fuel consumption (l/100km) 1.65
Ignition system TCI
Primary and secondary transmission ratio 2,900 (58/20) / 2,857 (40/14)
Clutch system Multi-disc, wet type centrifuge
Transmission ratio 1st: 2,833 (December 34) 2nd: 1,875 (16/30) 3rd: 1,353 (17/23) 4th: 1,045 (22/23)
Powertrain type 4 rotating numbers
Chassis
Frame type Underbone
Front suspension system Telescopic fork
Deviation of steering axis 26° 30' / 73 mm
Rear suspension system Shrugging the spring
Front brake Single hydraulic disc/drum
Rear brake Drum / Drum
Front tire 70/90-17 M/C 38P (With tube)
Rear tire 80/90-17 M/C 50P (With tube)

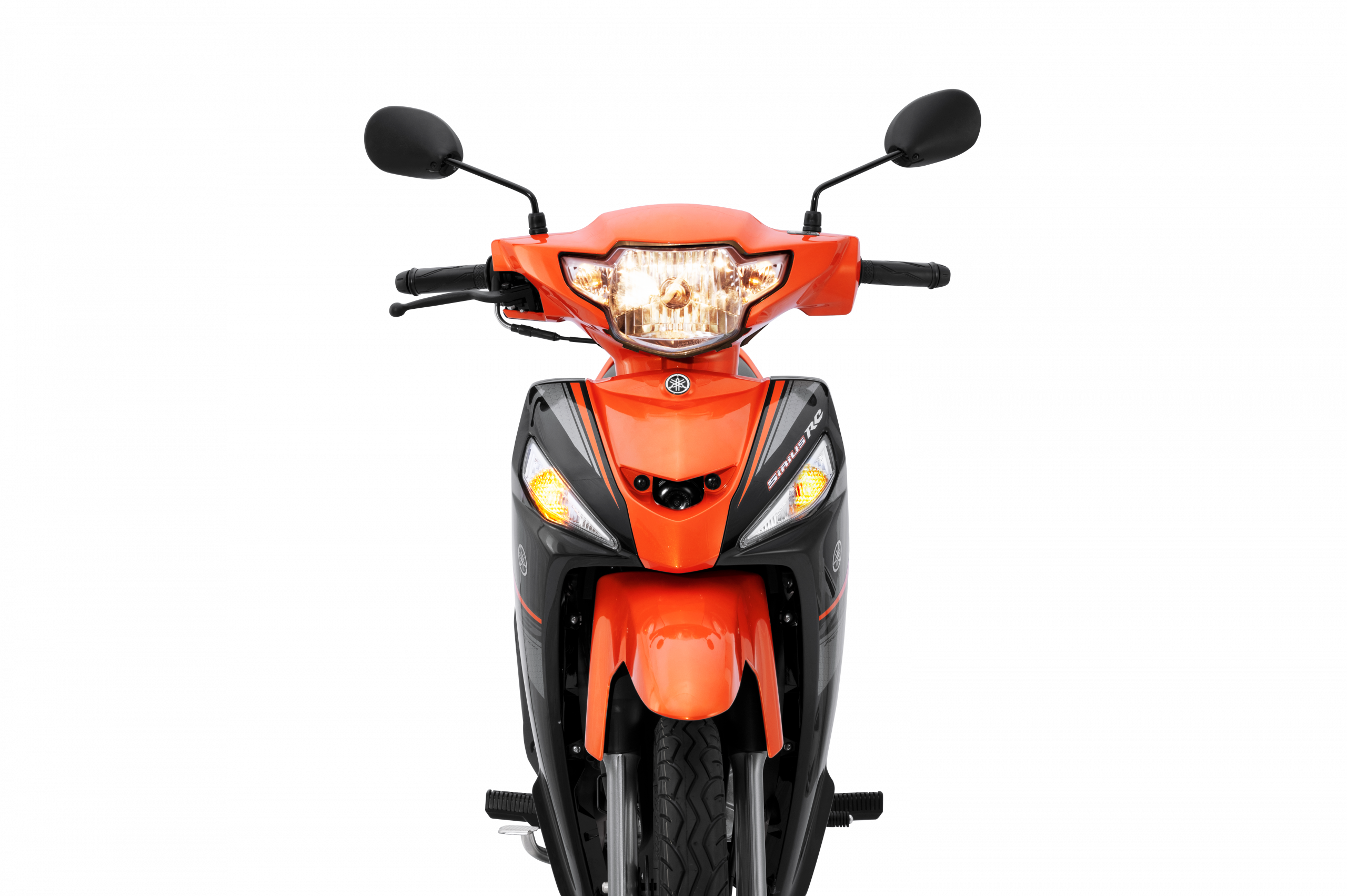

Headlight 12V 35/35W
Front lights/rear lights 12V 10W (halogen) ×2 / 12V 10W (halogen) ×2
Size
Dimensions (length x width x height) 1,940 mm × 715 mm × 1,090 mm
Saddle height 775 mm
Vehicle chassis height 155 mm
Distance between 2 wheel axles 1,235 mm
Wet weight 98 kg (full of gasoline and engine oil)
Petrol tank capacity 4.0L
Engine oil capacity 1.0L
Guarantee
Warranty period 3 years or 30,000km whichever comes first

KEY FEATURES

1

1

2

2

3

3

4

4
