COLOR

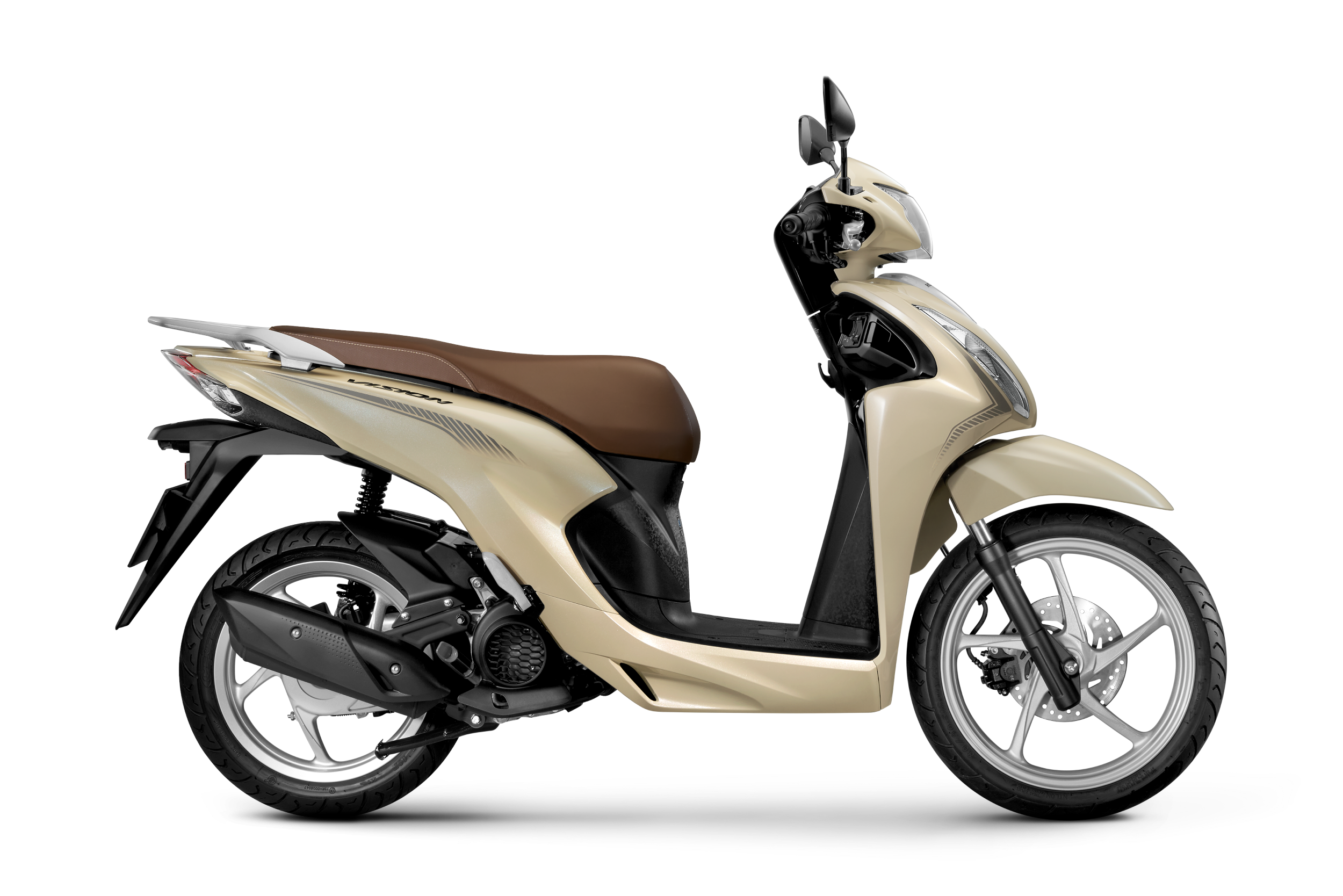

VISION Gold Black Silver
Contact Us
Gold Black Silver

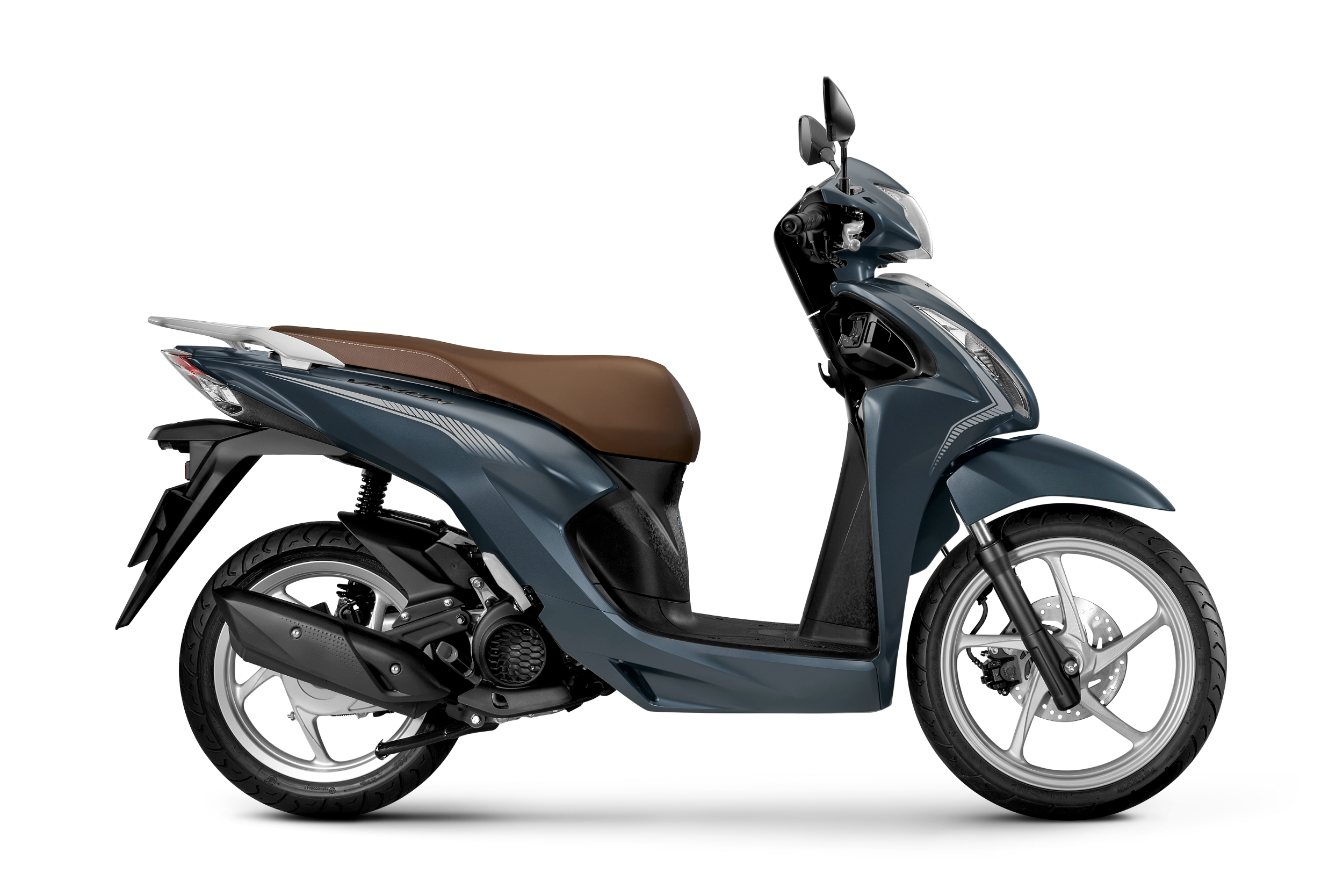

VISION Blue Black Silver
Contact Us
Xanh

TECHNICAL SPECIFICATIONS

 Self mass

98 kg

Length x WIDTH X HEIGHT

1.925mm x 686mm x 1.126mm

Wheel axle distance

1.277 mm

Saddle height

785 mm

Ground clearance

130 mm

Petrol tank capacity

4,9 L

Layer size before/after

80/90-16M/C 43P
90/90-14M/C 46P

Forks

Telescopic tube, hydraulic shock absorber

Rear fork

Single cylindrical spring, hydraulic damper

Engine type

4 stroke, 1 cylinder, air cooled

Maximum capacity

6,59kW/7.500rpm

Engine oil capacity

After discharging 0.65 L
After discharging 0.8 L

Fuel consumption

1,85L/100km

Transmission type

Belt, stepless variation

System starts

Electricity

Maximum moment

9,29 N.m/6.000 rpm

Cylinder capacity

109.5 cm3

Diameter x Piston stroke

47,0 x 63,1 mm

Compression ratio

10.0 : 1

KEY FEATURES

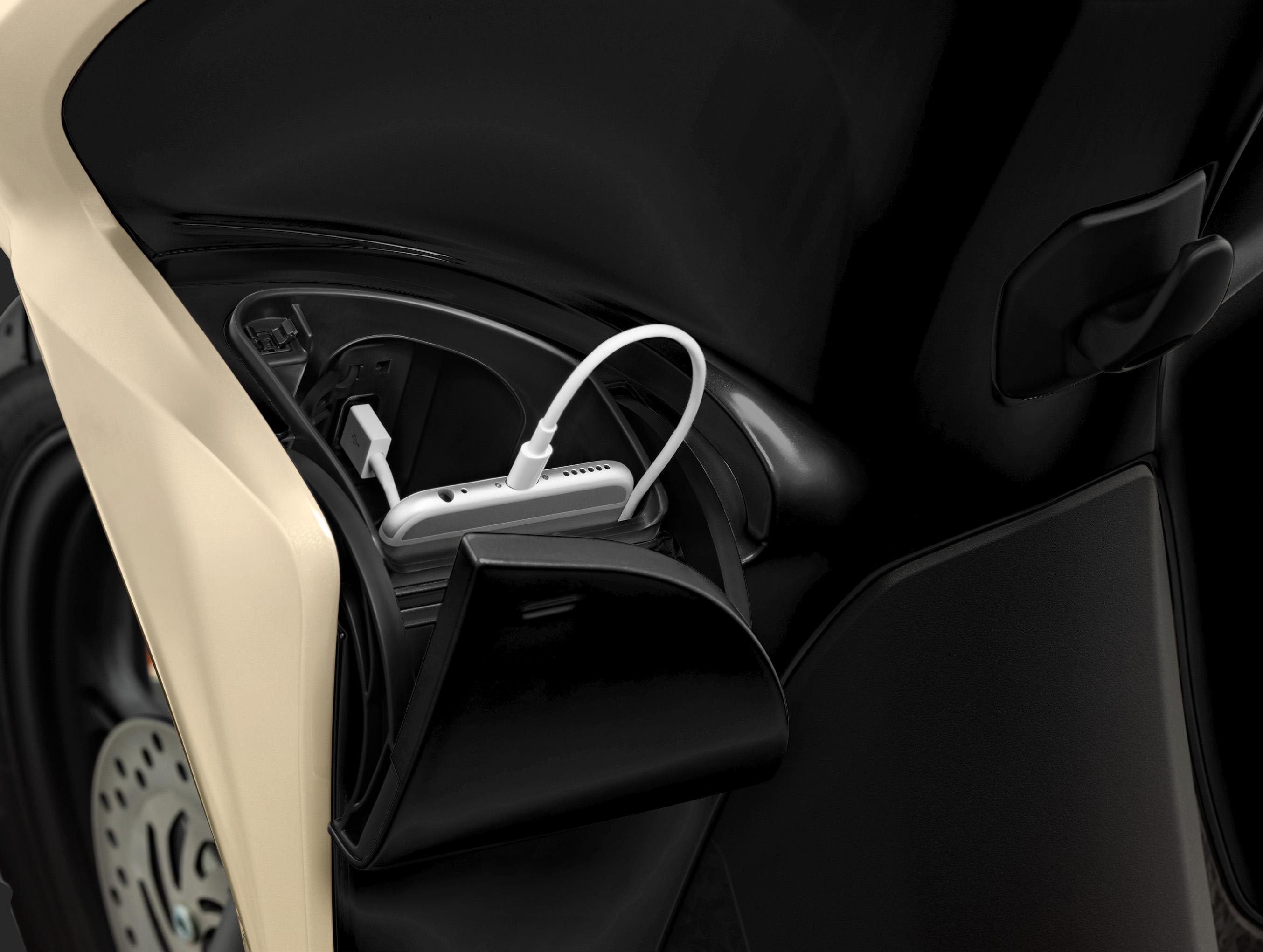

Front storage compartment with convenient charging port

Front storage compartment with convenient charging port

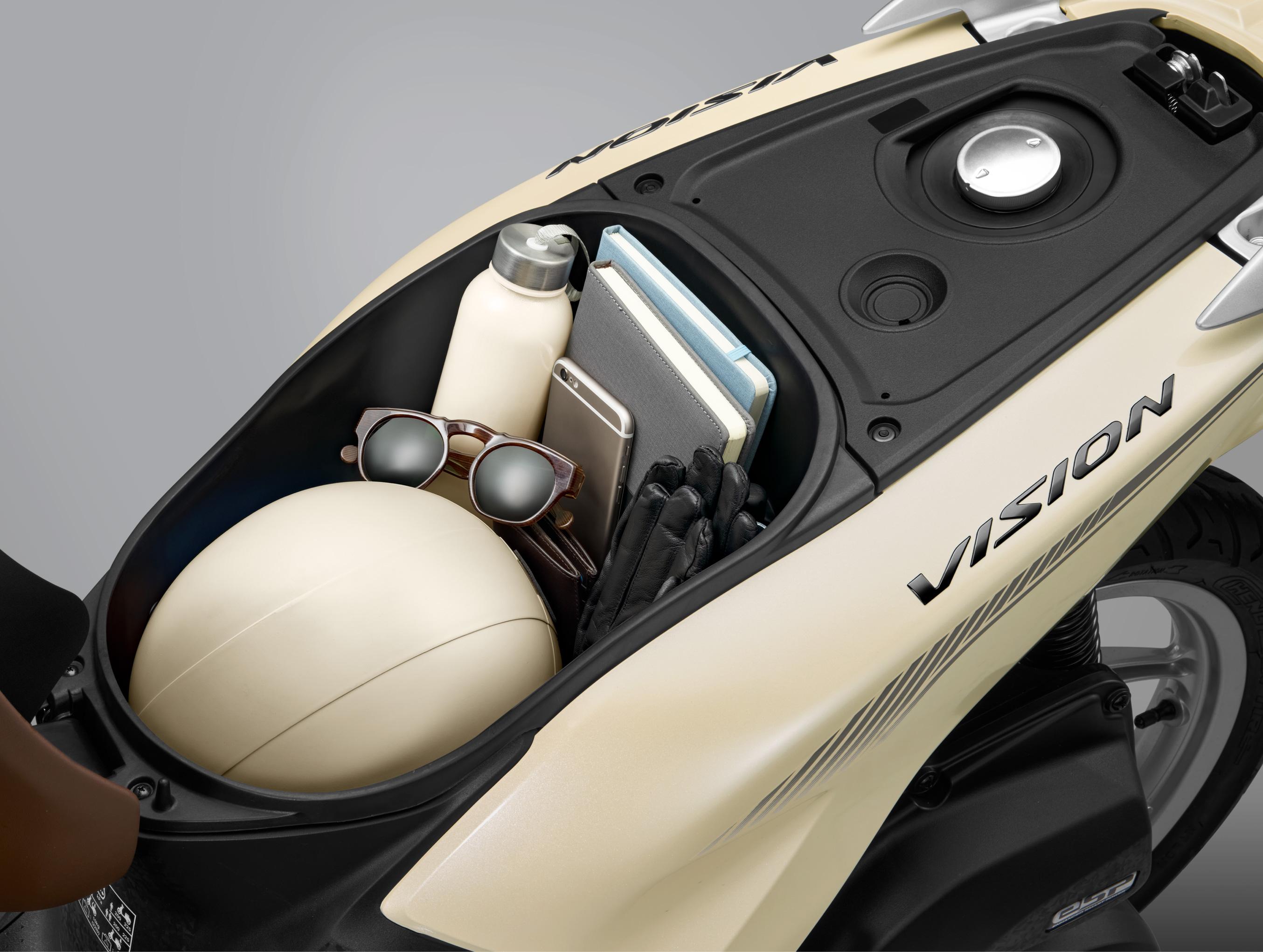

Spacious underseat storage compartment

Spacious underseat storage compartment

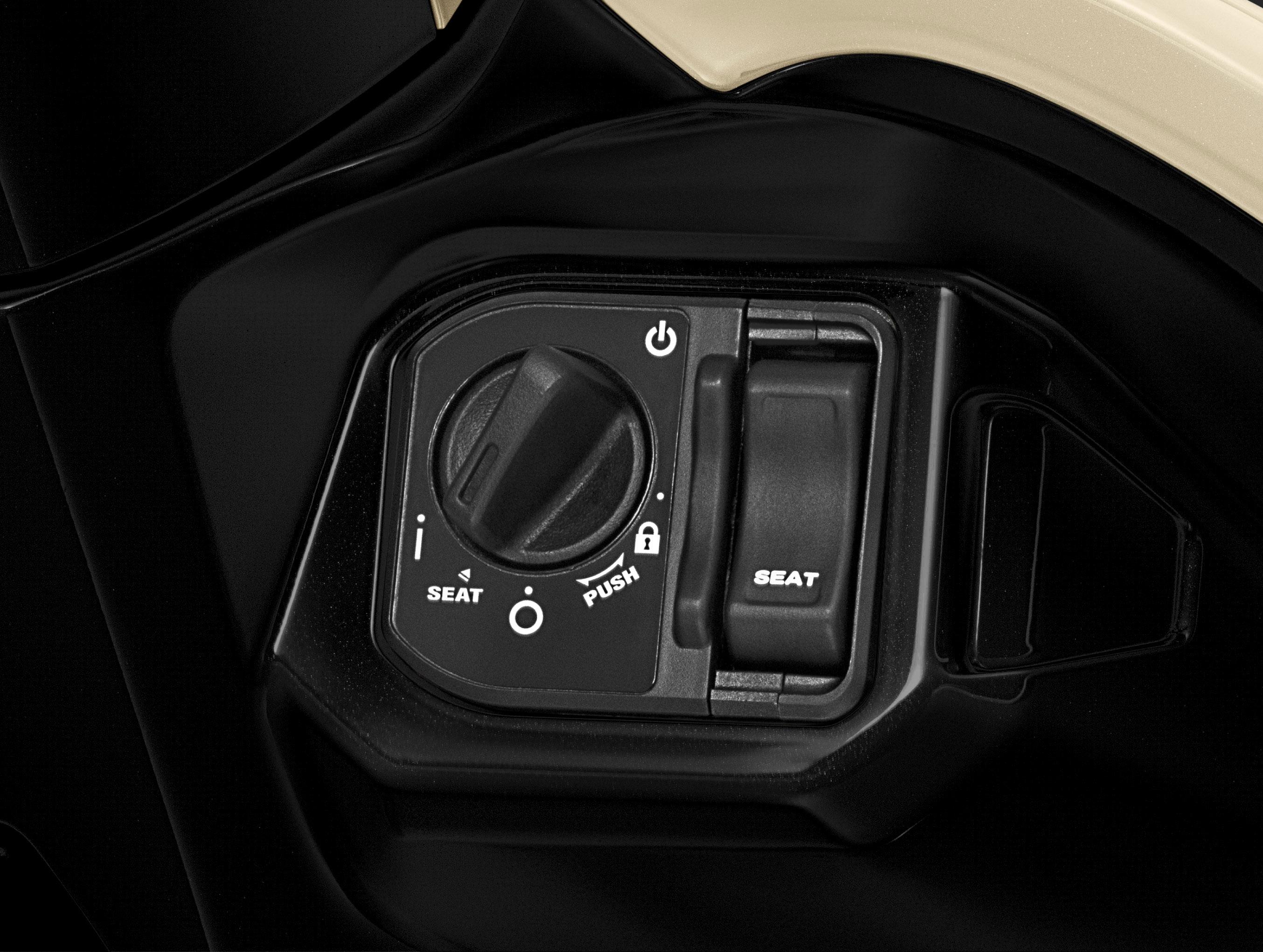

SMART Key smart lock system

SMART Key smart lock system

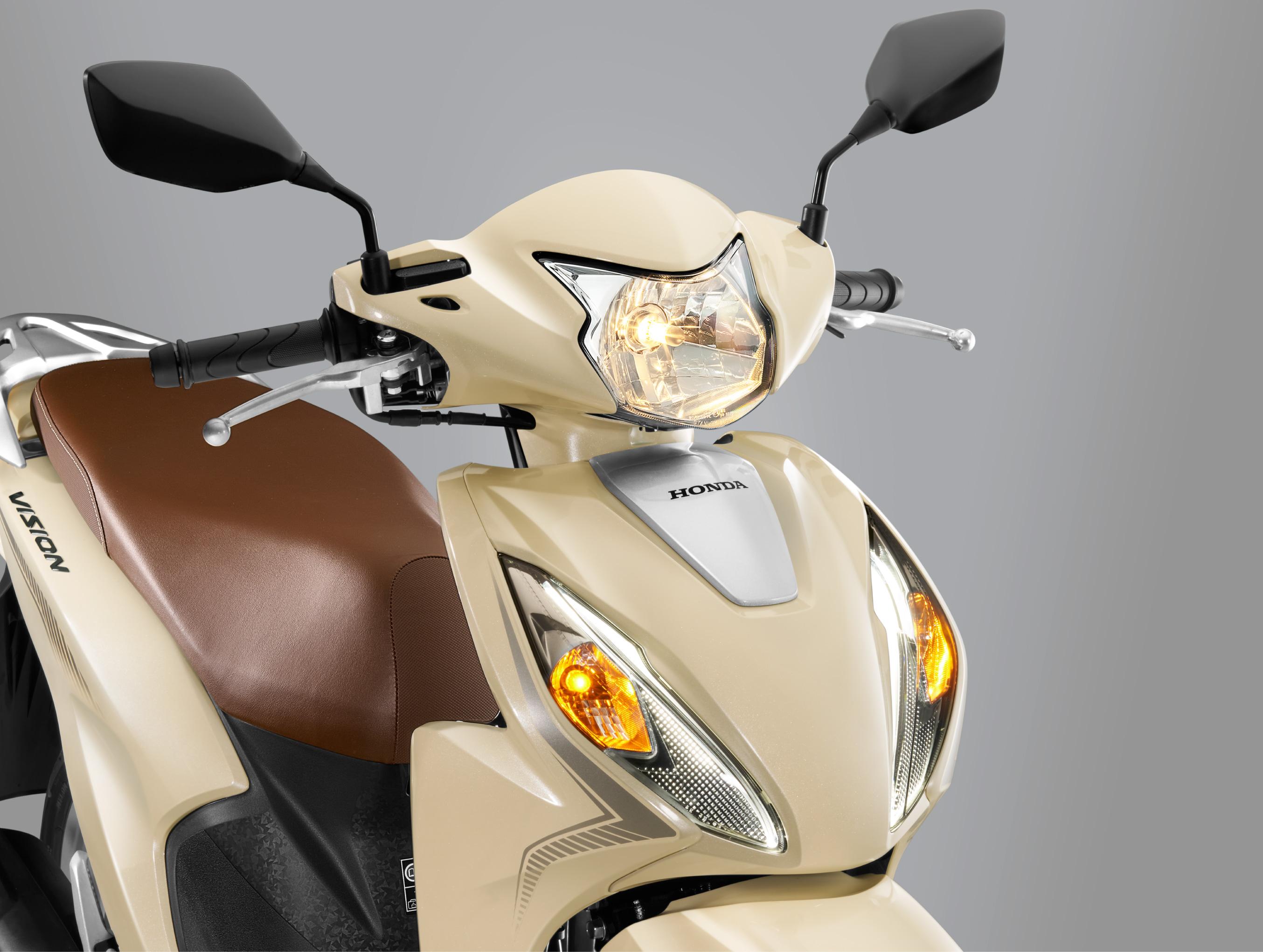

The front lights are always on

The front lights are always on
