COLOR

Wave Alpha 110cc
Contact Us

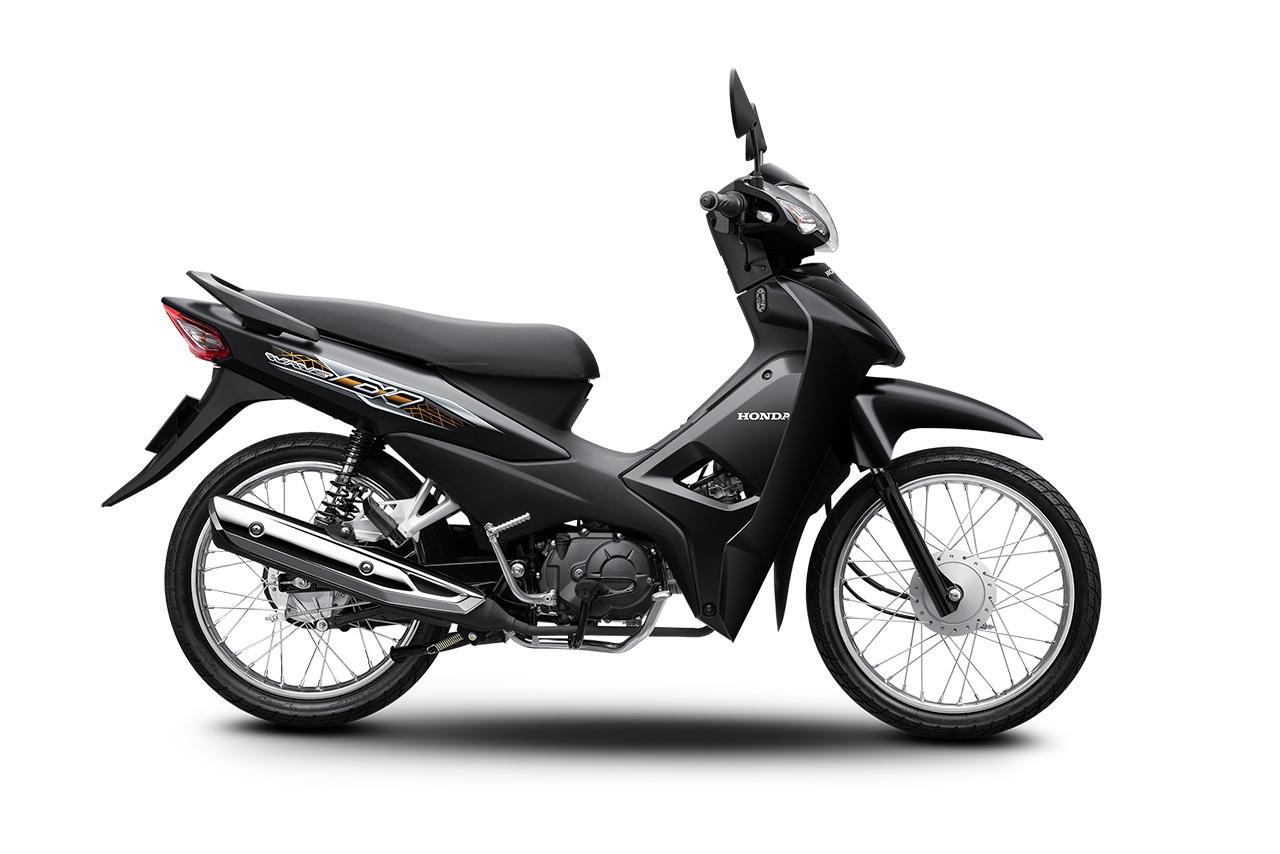

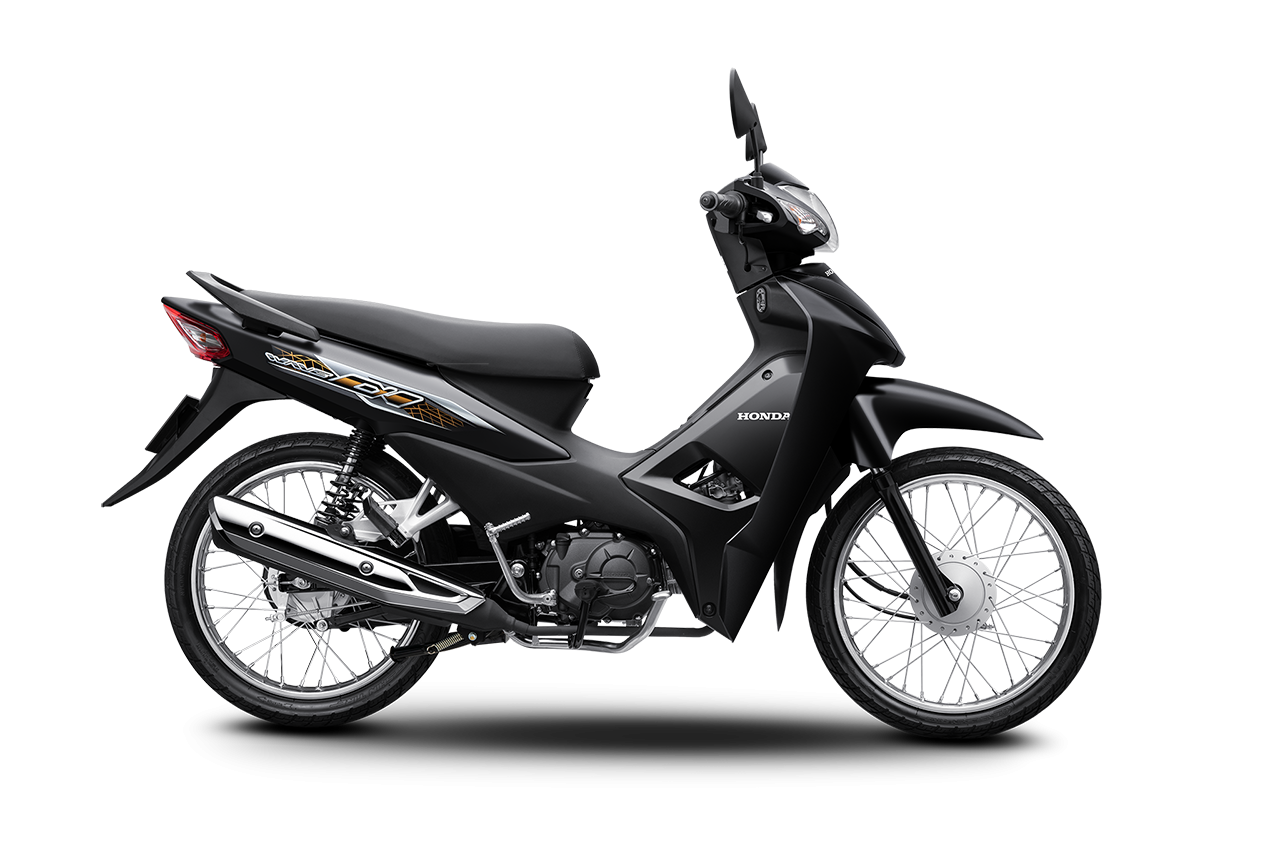

Rough black
Wave Alpha 110cc
Contact Us

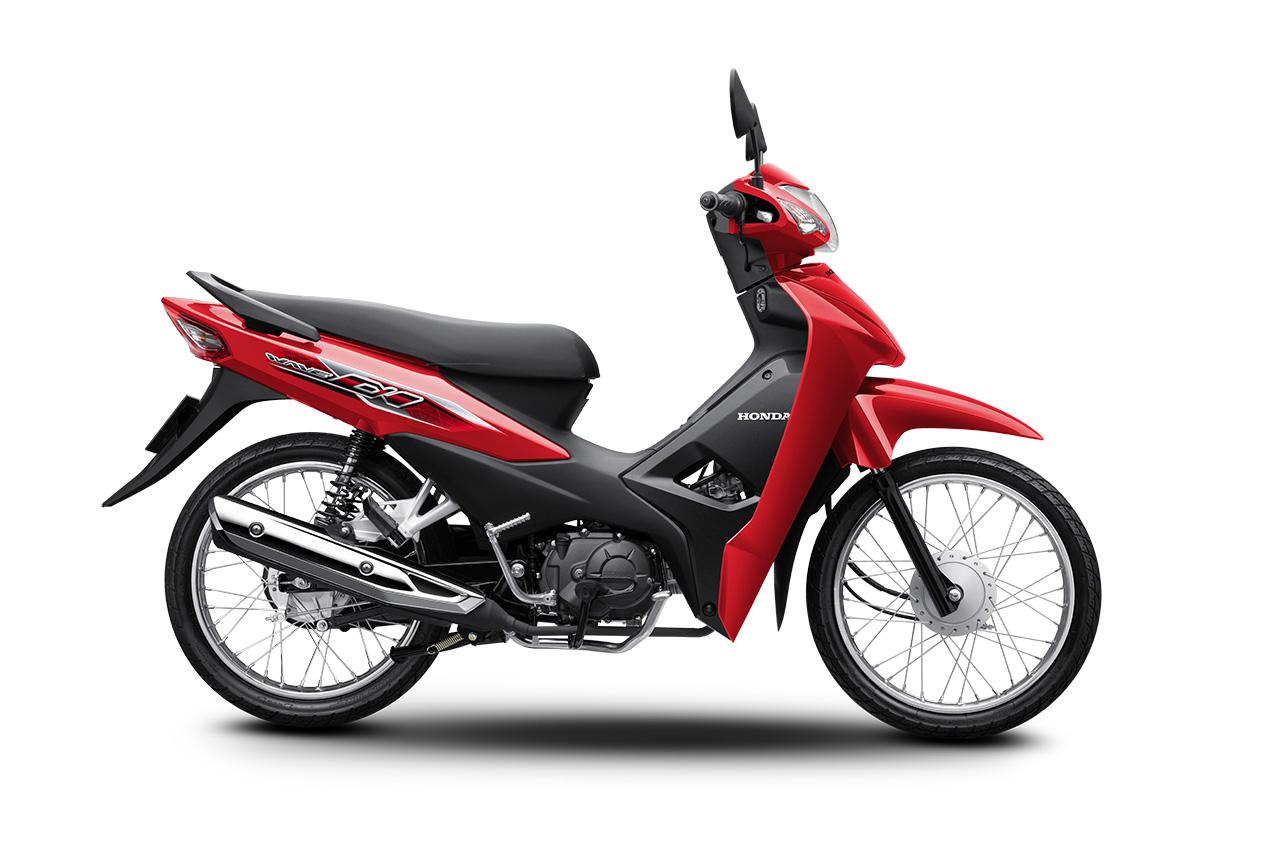

Red
Wave Alpha 110cc
Contact Us

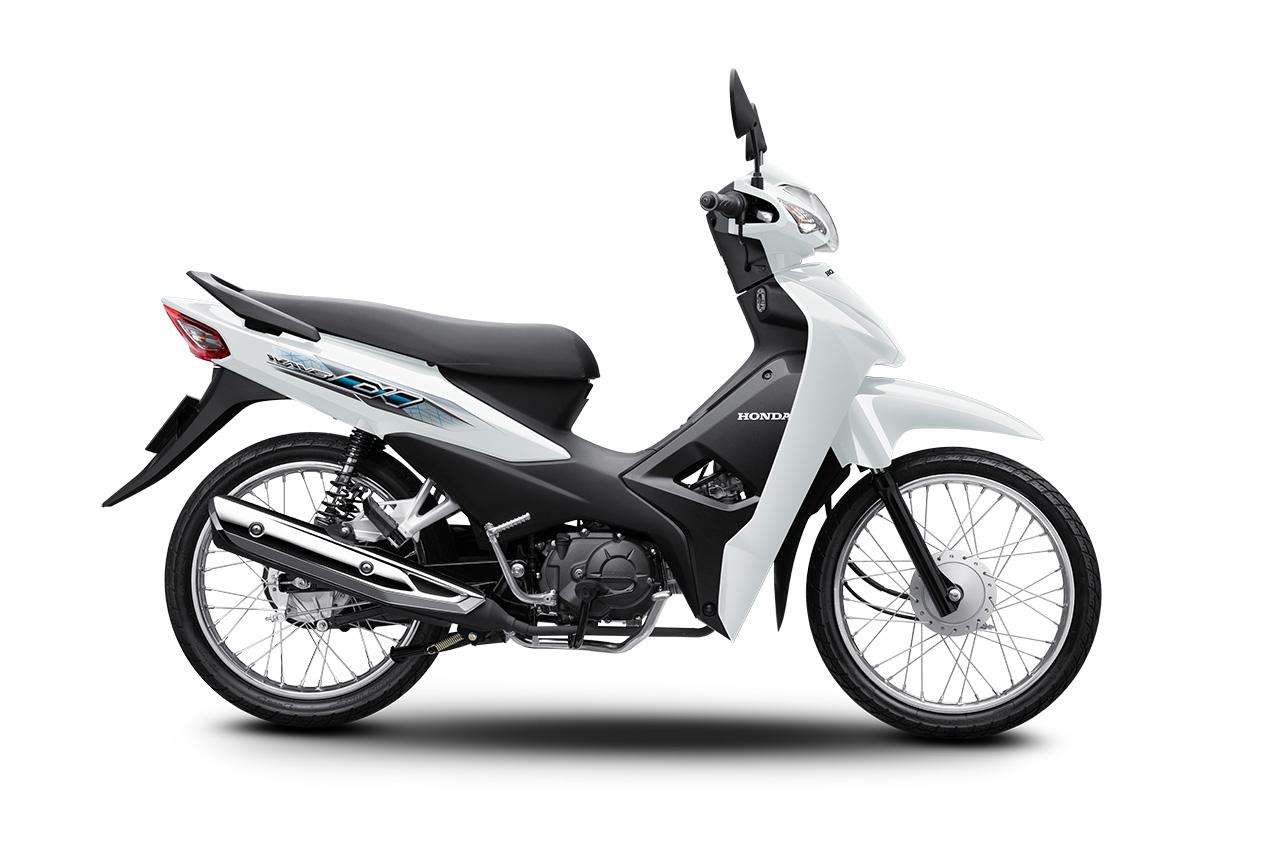

White
Wave Alpha 110cc
Contact Us
Blue

TECHNICAL SPECIFICATIONS

Self mass

96 kg

Length x WIDTH X HEIGHT

1,913 mm x 689 mm x 1,076 mm

Wheel axle distance

1,224 mm

Saddle height

770 mm

Ground clearance

134 mm

Petrol tank capacity

3.7 L

Layer size before/after

Front tire 70/90-17M/C 38P
Rear tire 80/90-17M/C 50P

Forks

Telescopic tube, hydraulic shock absorber

Rear fork

Cylindrical spring, hydraulic damper

Engine type

4 stroke, 1 cylinder, air cooled

Maximum capacity

6.12 kW/ 7,500 rpm

Engine oil capacity

After discharging 0.8 L
After discharging 1.0 L

Fuel consumption

1.72 l/100km

Transmission type

Mechanical, 4 round numbers

System starts

Electricity

Maximum moment

8.44 Nm/ 5,500 rpm

Cylinder capacity

109.2 cm3

Diameter x Piston stroke

50.0 x 55.6 mm

Compression ratio

9.0 : 1



KEY FEATURES

Special edition youthful appearance

Special edition youthful appearance

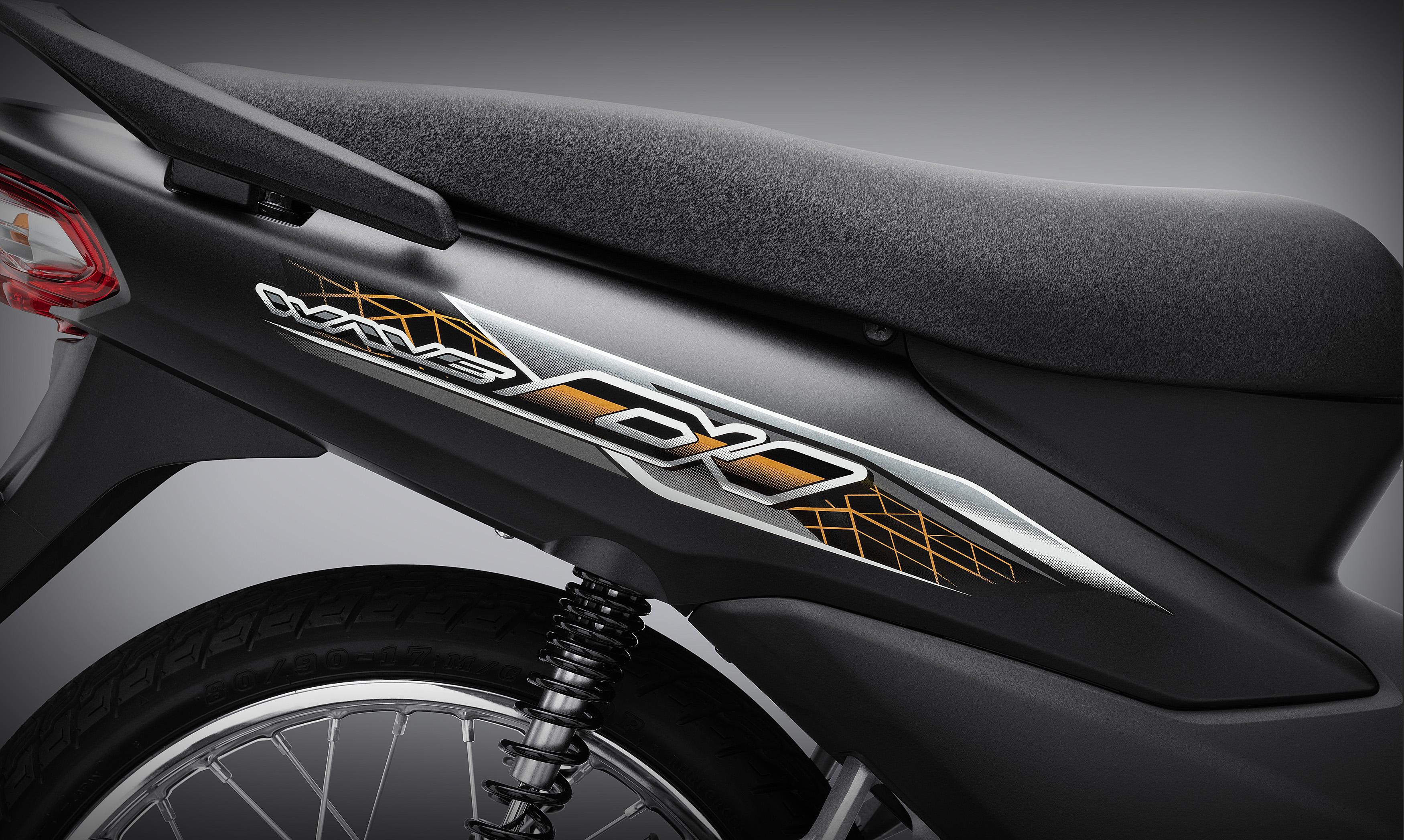

New unique car sticker

New unique car sticker

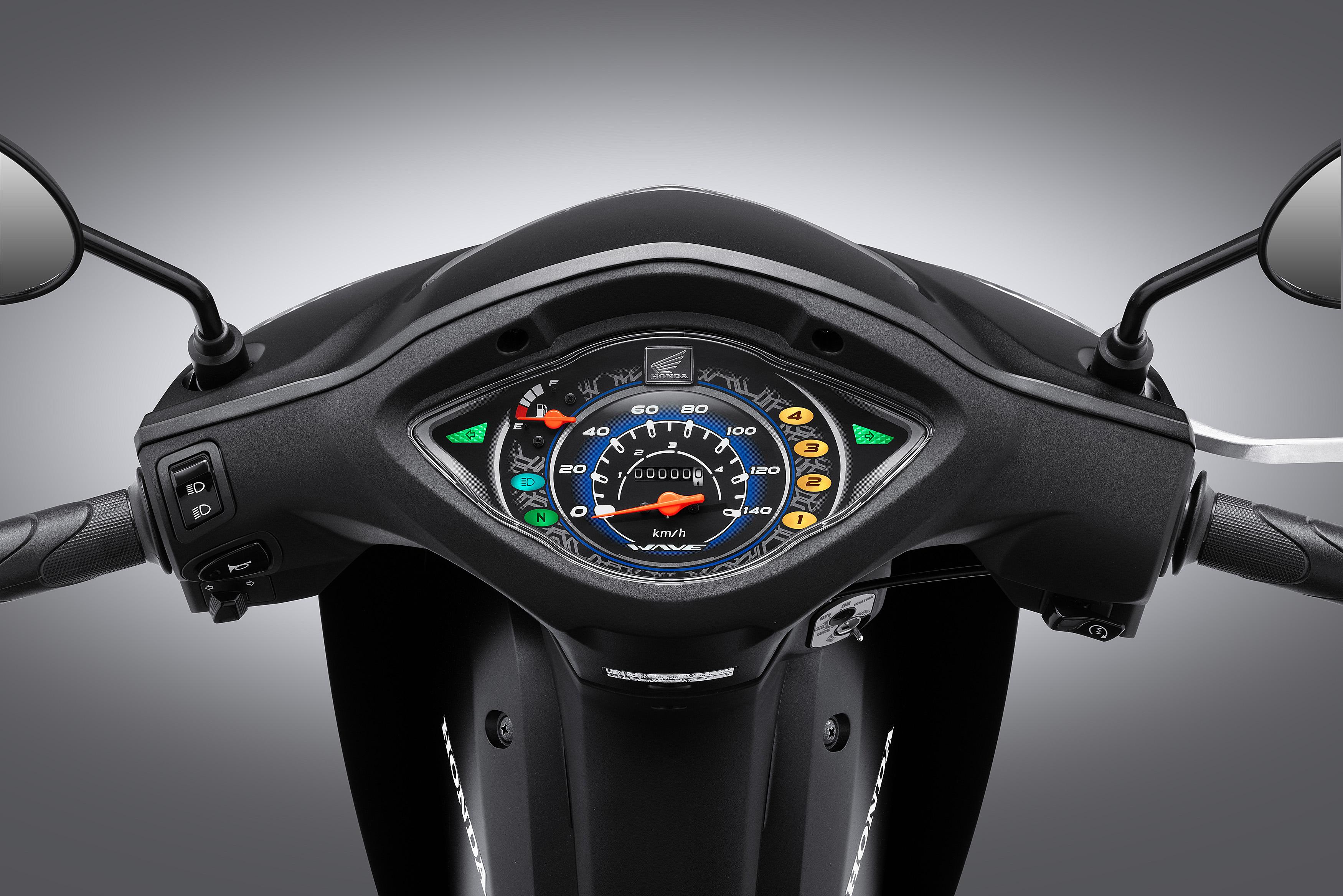

The watch face is easy to see

The watch face is easy to see

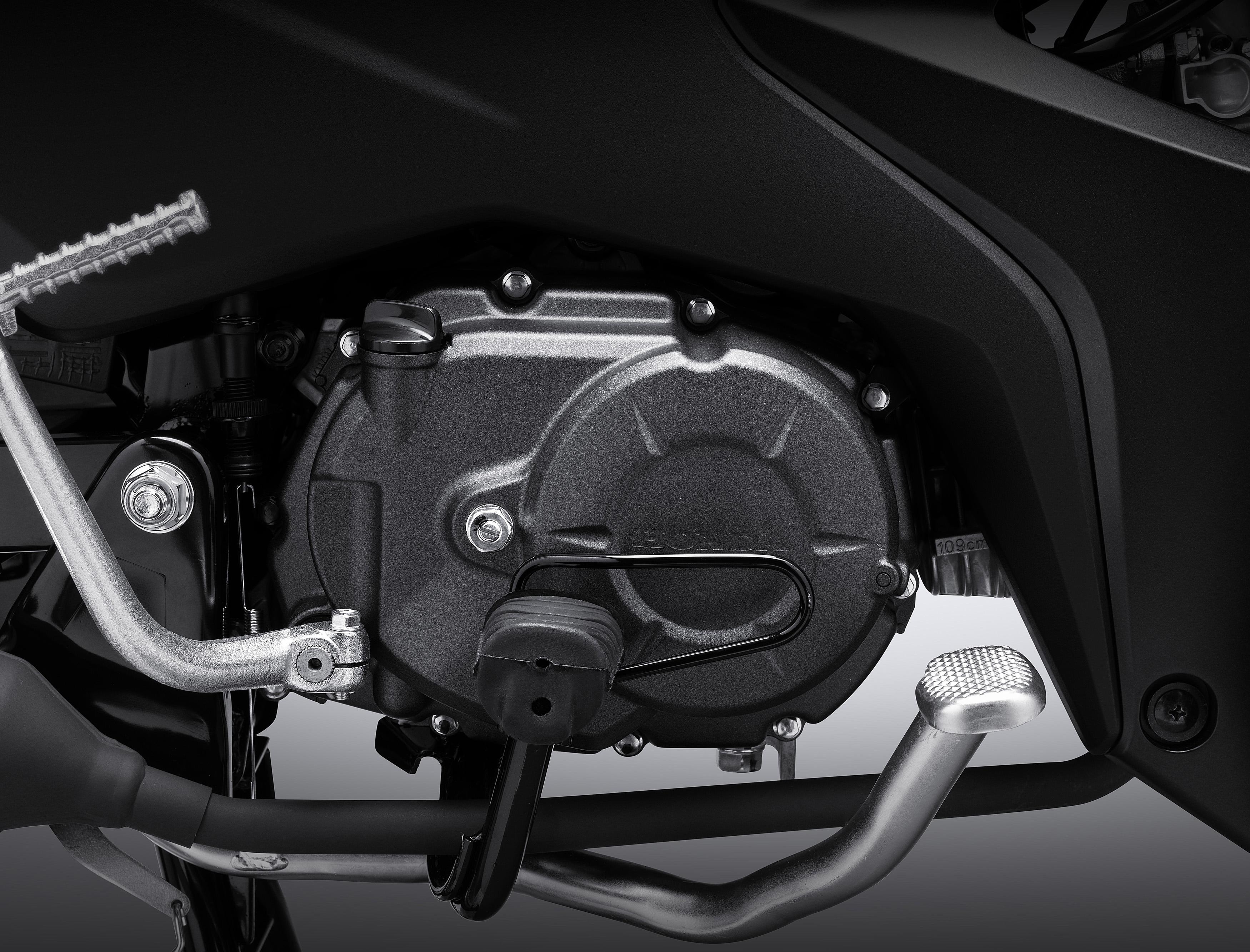

110cc engine

110cc engine

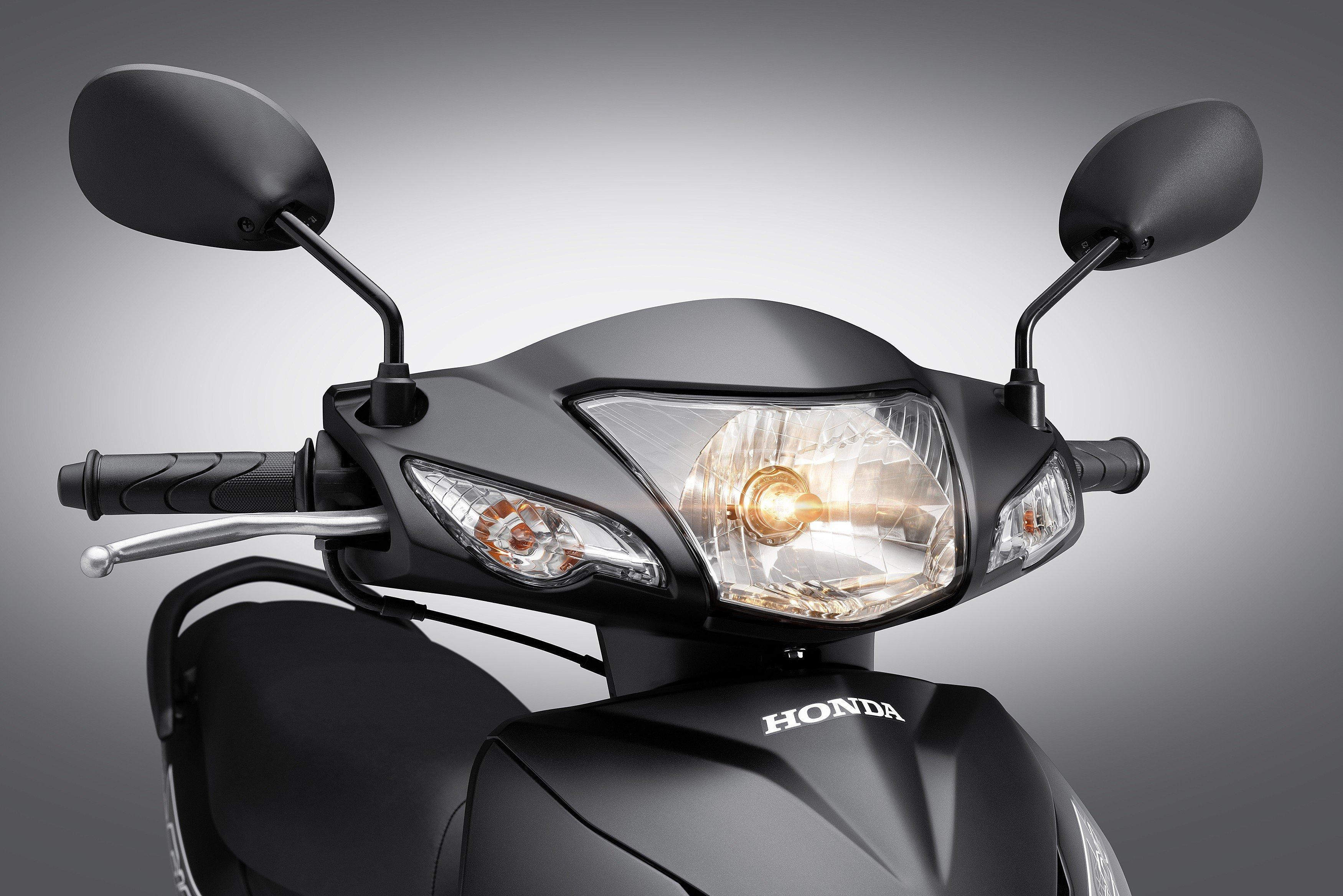

The front lights are always on when the vehicle is operating

The front lights are always on when the vehicle is operating

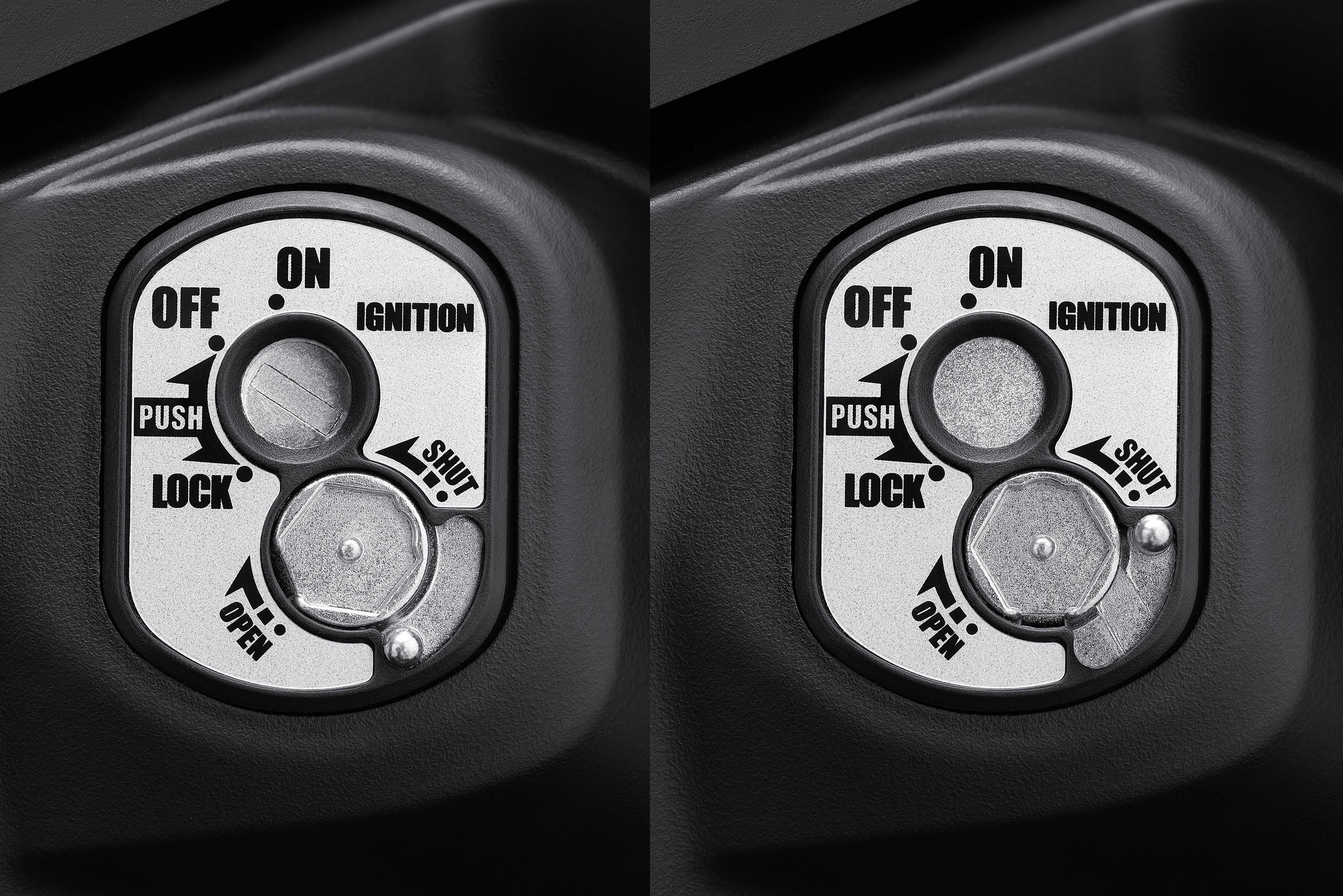

3-in-1 multi-function lock

3-in-1 multi-function lock
